HD Car Single Card Recorder

HD Car Single Card Recorder

Features

4G, GPS/BD, SD card

Product Description

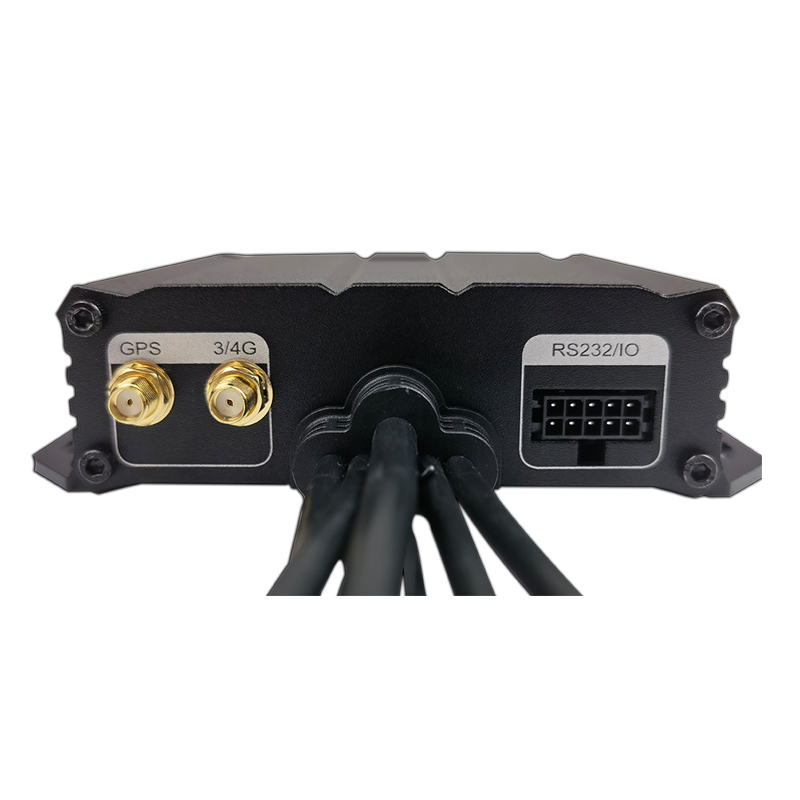

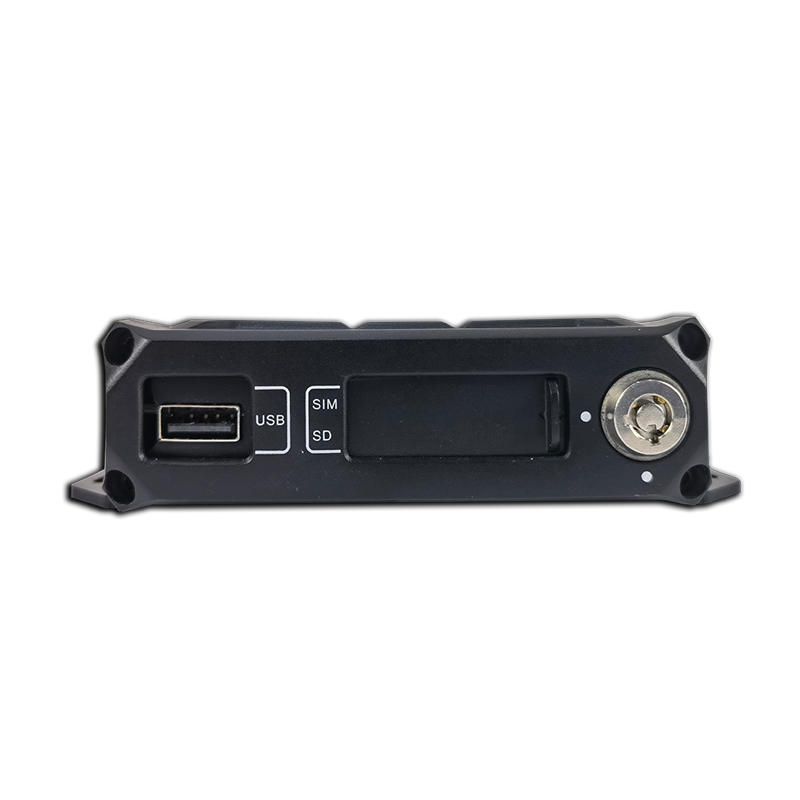

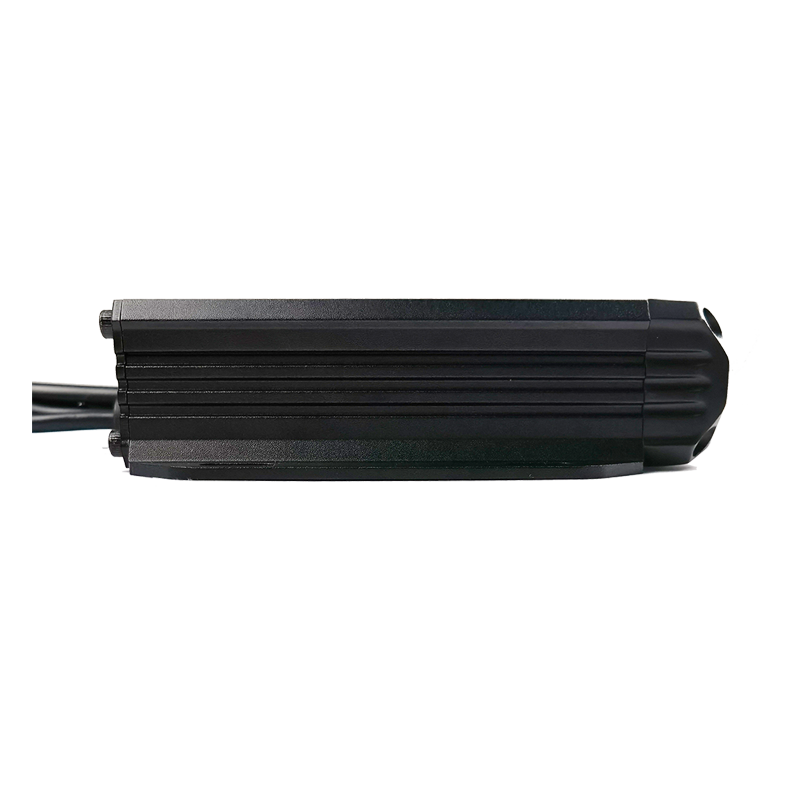

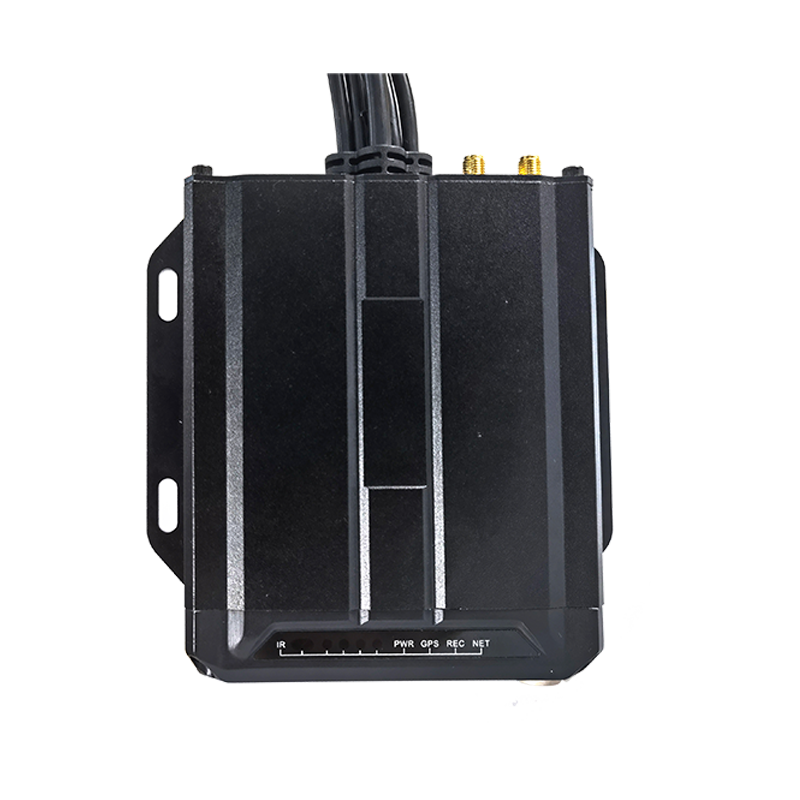

M15Hv is a multifunctional and flexible device developed specifically for vehicle-mounted and remote video monitoring. It is an upgraded version of our M10H. It adopts high-speed processing chips and stable embedded systems, uses advanced H.265 video compression/decompression technology, and mature 4G, GPS/BD reliable solutions. Vehicle driving information recording and remote video upload, combined with the dispatch monitoring platform, can realize central remote video monitoring, vehicle intelligent dispatch management and playback analysis based on the central database. The product has the characteristics of strong vibration resistance, simple appearance, flexible and convenient installation, comprehensive functions, and high reliability, providing customers with more comprehensive, safe and high-quality services.

Product Parameters

Product Parameters

project Parameter Description
Audio and video input Video Input Support 4-channel AHD input
Audio Input Support 2-way audio input
Audio and video output Video Output 1 CVBS output
Voice Output 1 channel voice output
Audio and video

parameter encoding

Video Encoding H.264 Main Profile/H.265
Video distribution rate 1080P, 720P, D1
Audio Encoding Default G.726, G.711A optional
storage SD Card Support 1 SD card
Wireless network 4G Wireless Support 1 SIM card, optional: all mainstream communication modules in the world
Positioning method BeiDou IGPS Support hybrid positioning, speed detection and time synchronization
interface USB USB2.0 interface. Can export data. External engineering tool
Serial Port Support 1 RS232, can connect external sensor
IO Support 4-way level input, 1-way output
Physical specifications size 100mm (L)*120.8mm (W)*32mm (H) (excluding tail wire)
weight Bare machine: 0.6kg

Full box: 0.8kg (based on M15Hv-SGNE1-L)

Work Environment Operating temperature -20~+70℃
Operating humidity 8%-90% (no condensation)
other Operation Mode Remote Control
Gravity sensor Built-in GSensor
