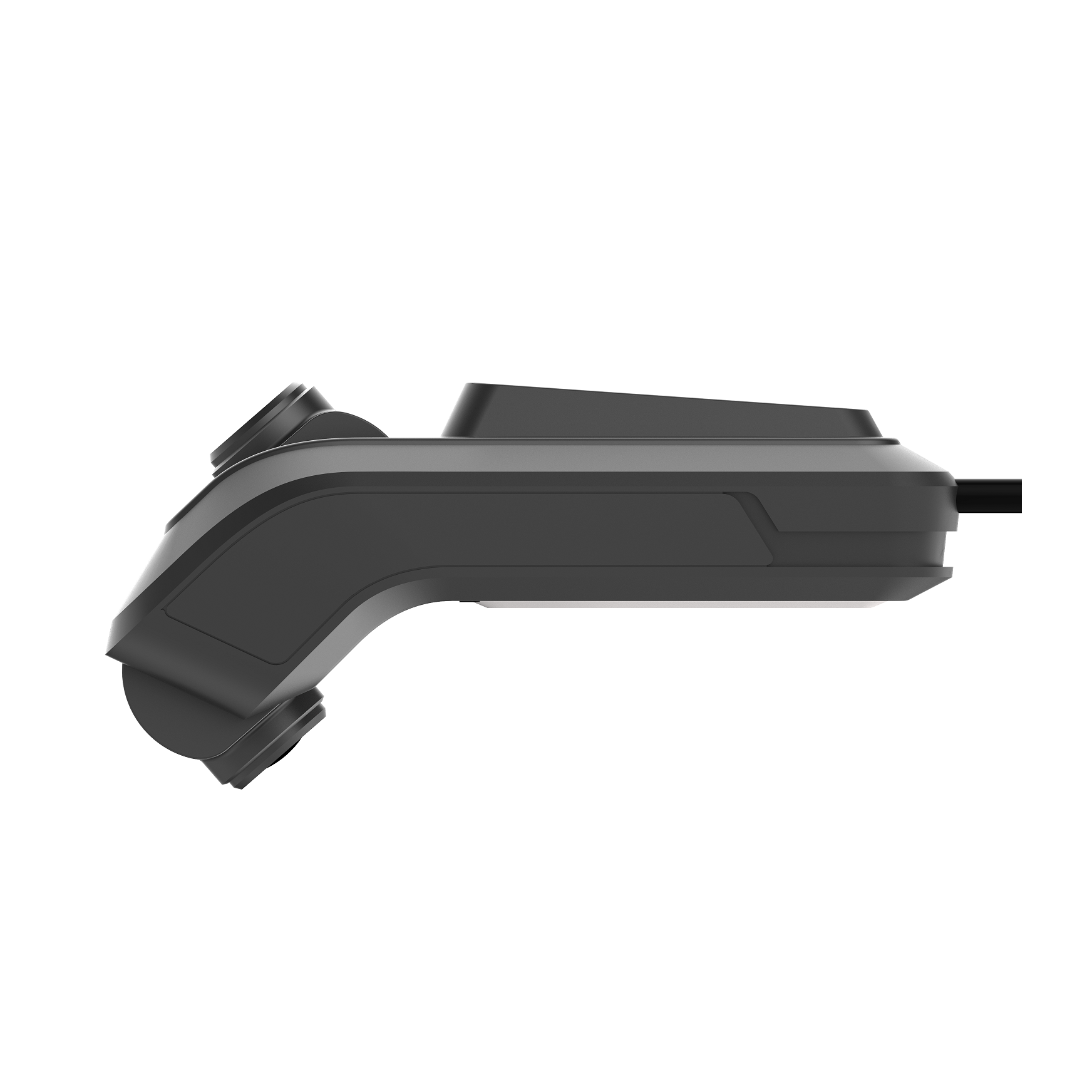

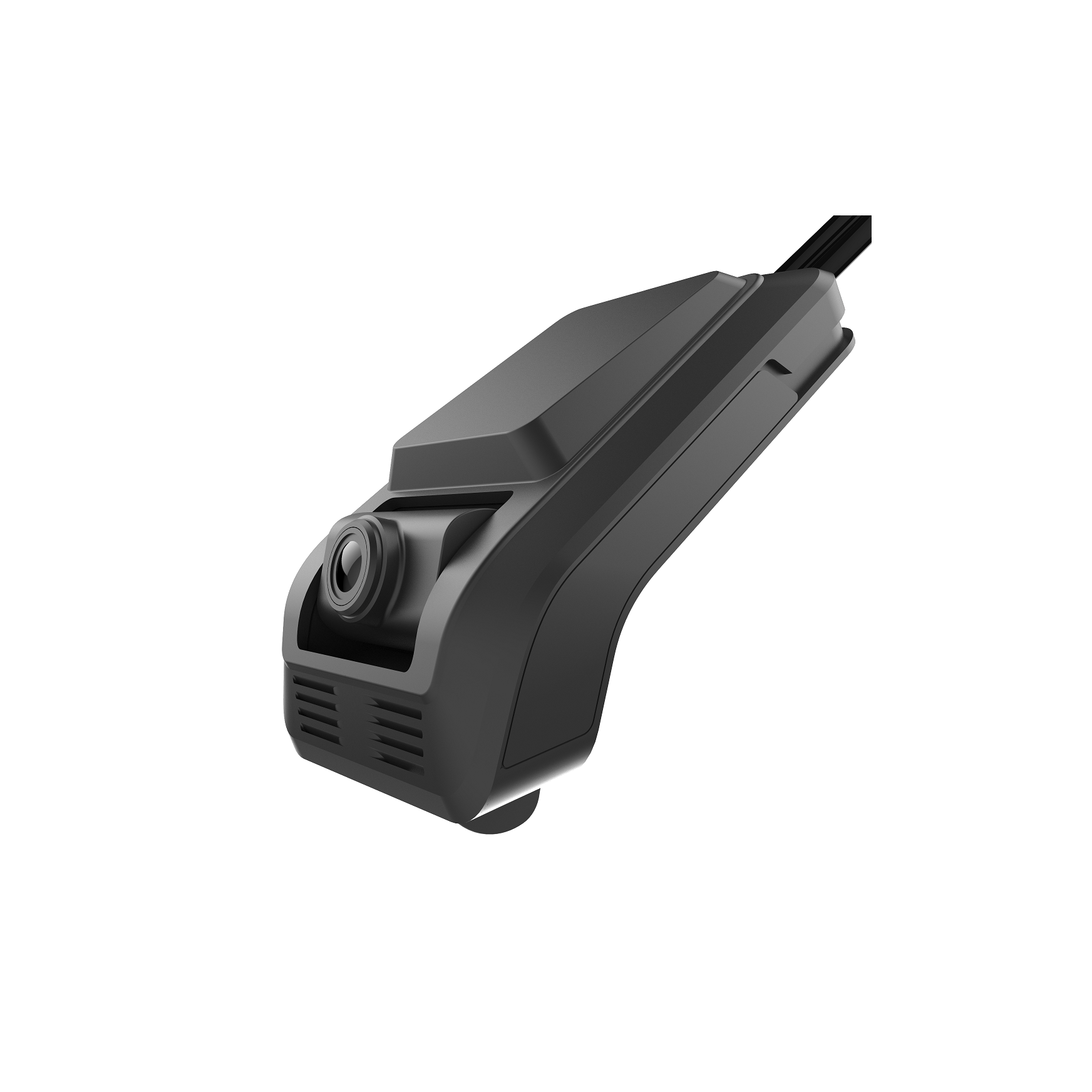

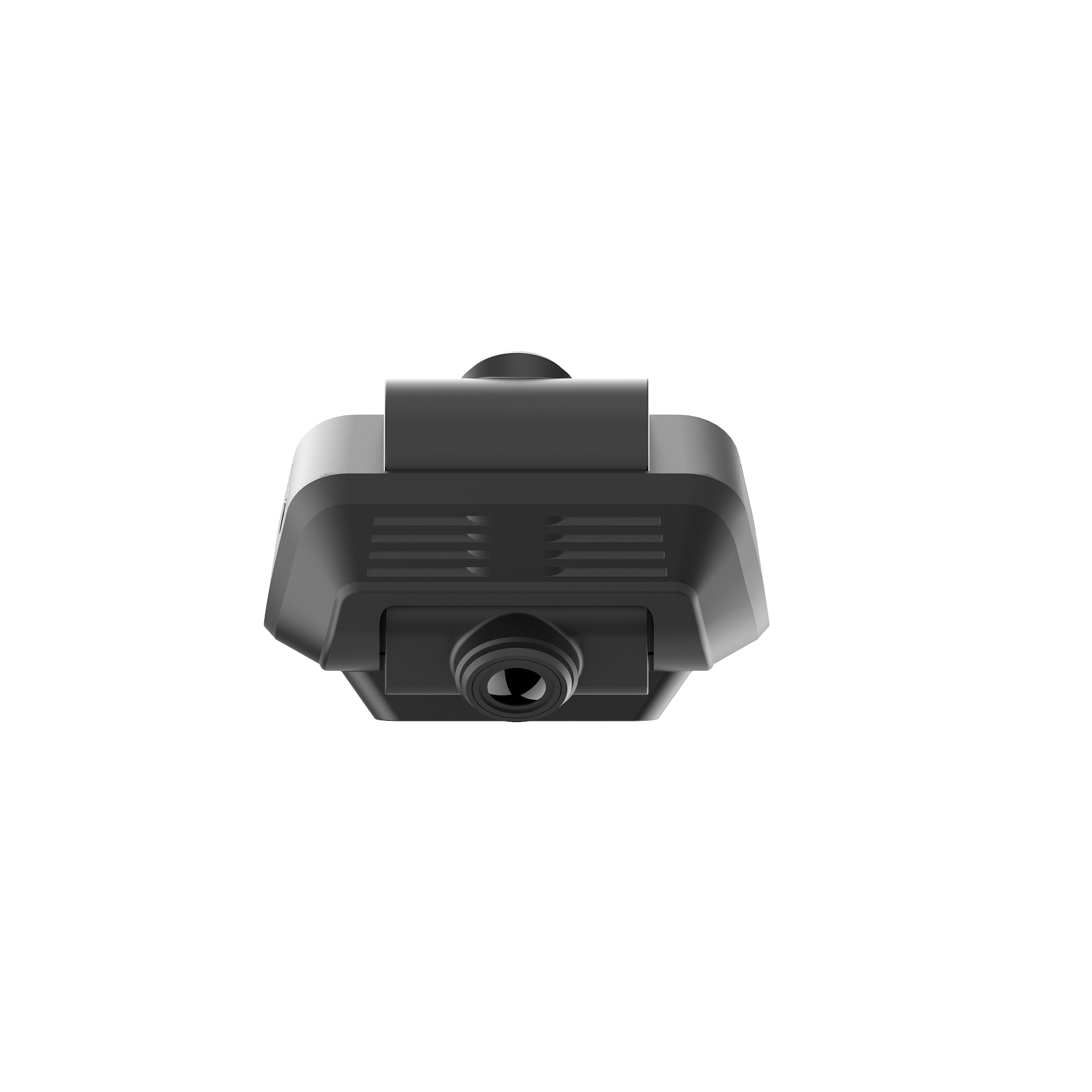

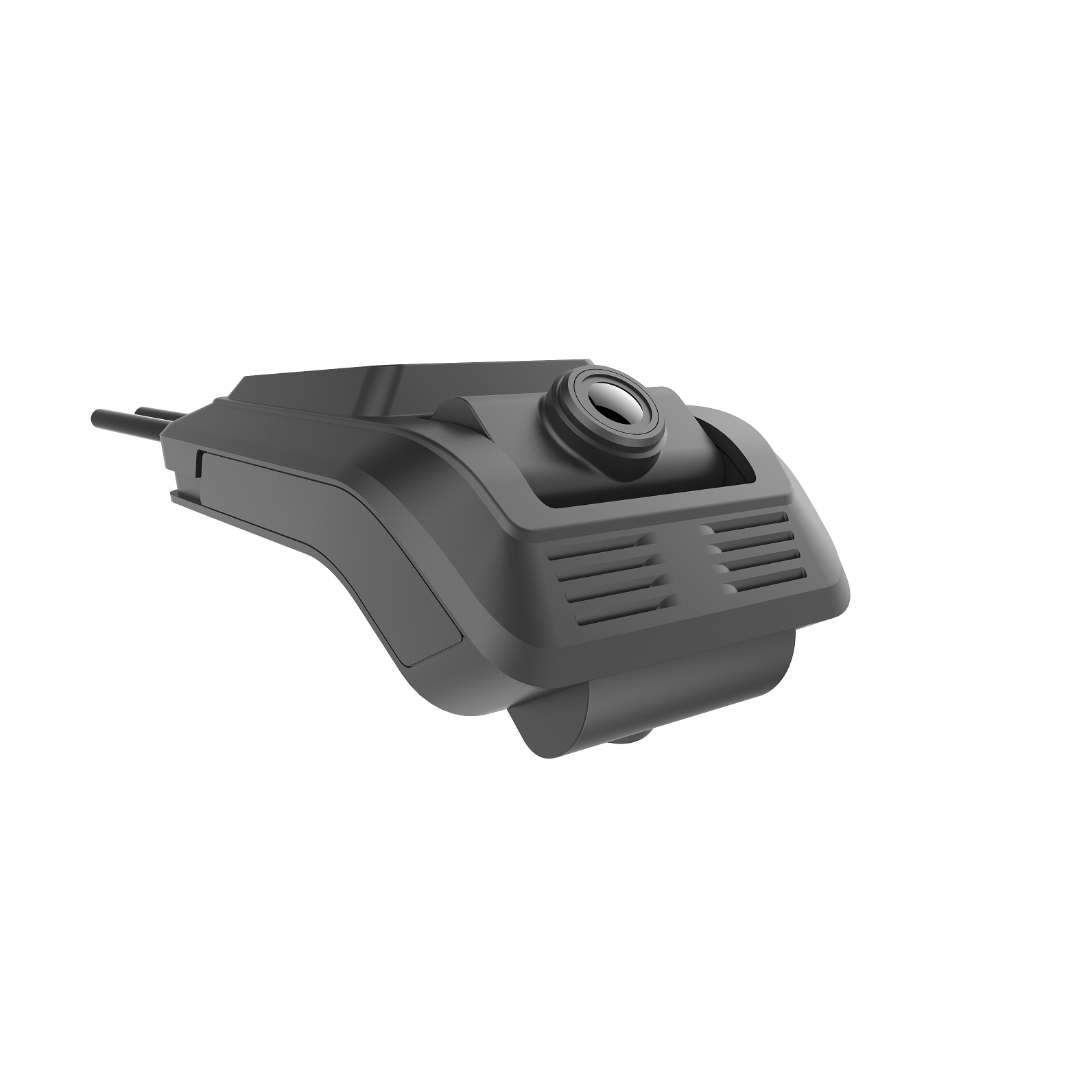

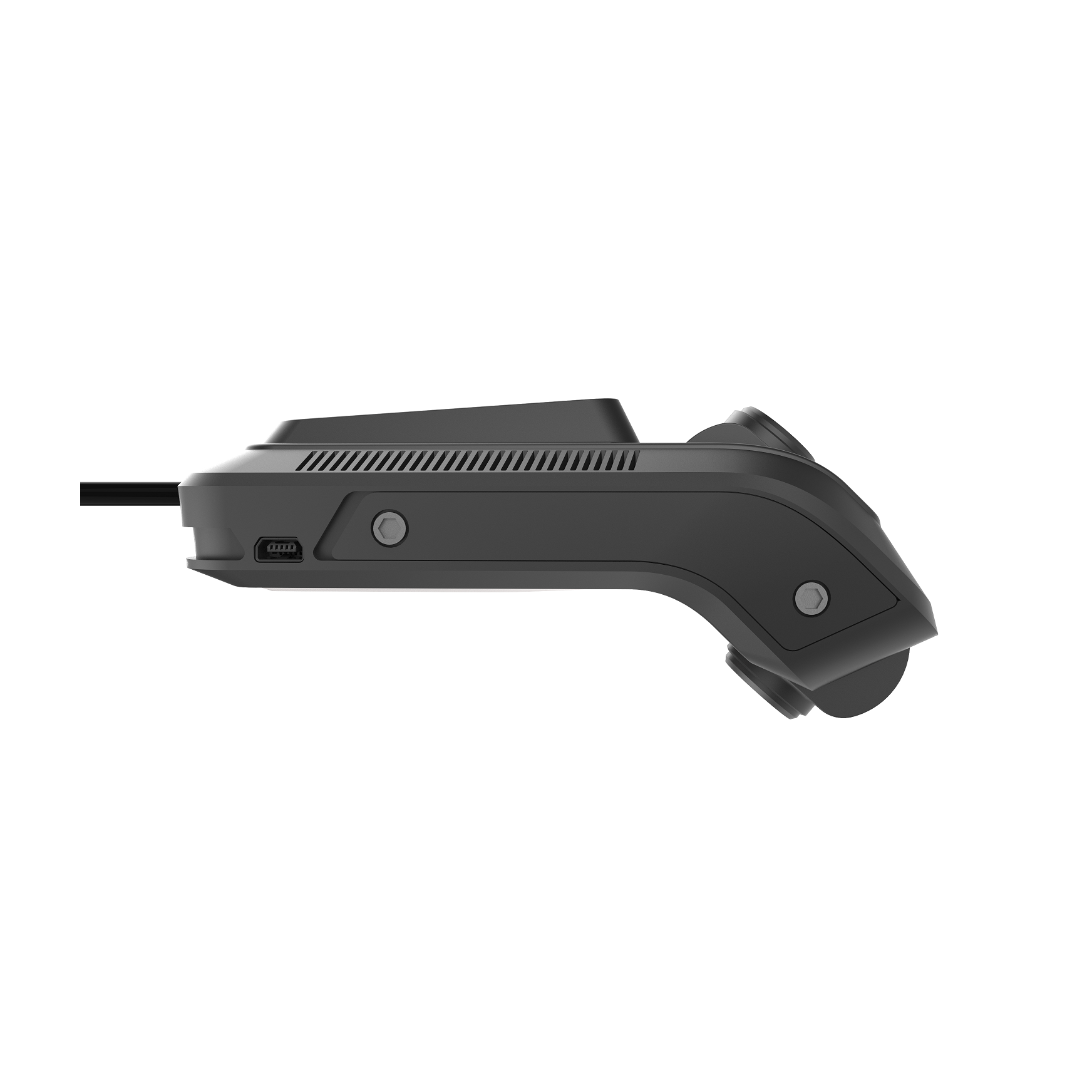

Front and rear dual camera car video recorder
Features
- 4G,GPS/BD,1080P,TF card,ADAS,DSM,dual cameras
Product Description
- Adopt H.264 codec, with maximum encoding resolution of 1080P 60 frames;
- Front and rear dual-channel cameras: front camera 1080P, rear camera 720P; can expand 2-channel 720P AHD cameras (with AI algorithm, supports expansion of 1-channel 720P AHD camera);
- Supports 1 TF card storage, supporting 256G capacity;
- Support 2-way IO alarm input and 1 RS232 interface;
- Support 4G, GPS and other functions;
- Support mobile phone connection device hotspot;
- Support mobile APP, client, and platform software to preview videos and parameter configuration;
- Dedicated file system improves disk read and write efficiency and makes recording more stable;
- Optional AI intelligent algorithm, supports ADAS, DMS, BSD detection (two optional);
Product Parameters
| project | Parameter Description | |||
| system | Operating language | Chinese/English | ||
| operating system | Linux | |||
| User Interface | Graphical menu operation interface (OSD menu), character overlay function, no CVBS output by default | |||
| GUI | Operate via mobile APP | |||
| processor | CPU | ARM Cortex-A7 1.0GHZ | ||
| Memory | Built-in DDR 2Gb | |||
| Flash | 2Gb | |||
| Video and recording systems | Video Input | Resolution: front 1080P, rear 720P | External 1-channel 720P AHD camera | |
| SD Card | TF card, 256G | |||
| Only supports single card | ||||
| Video Standards | PAL, NTSC | |||
| Video compression format | H.264 compression format | |||
| Preview Features | Single channel, 4-screen splicing preview, support manual/event-triggered full-screen display function | |||
| Video resolution | Support 1080P, 720P, D1 optional, total encoding resources 1080P 60 frames | |||
| Video quality | 1 to 8 levels of image quality, 1 is the best, 8 is the lowest | |||
| Video recording method | Automatic recording by default, supports ignition recording, alarm recording, etc. | |||
| Audio | Audio Input | 1 channel audio, built-in MIC | ||
| Audio Output | 1 channel, built-in amplifier, built-in speaker | |||
| Compression format | G.711A compression format | |||
| Recording method | Synchronous audio and video recording | |||
