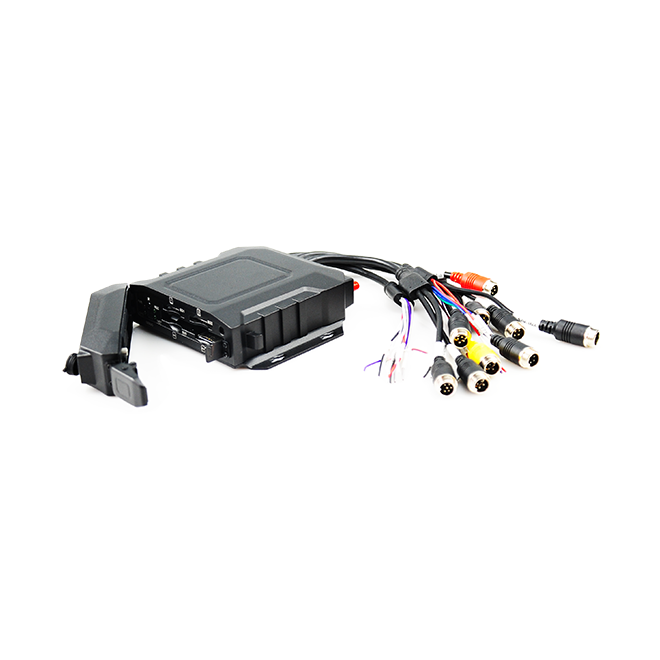

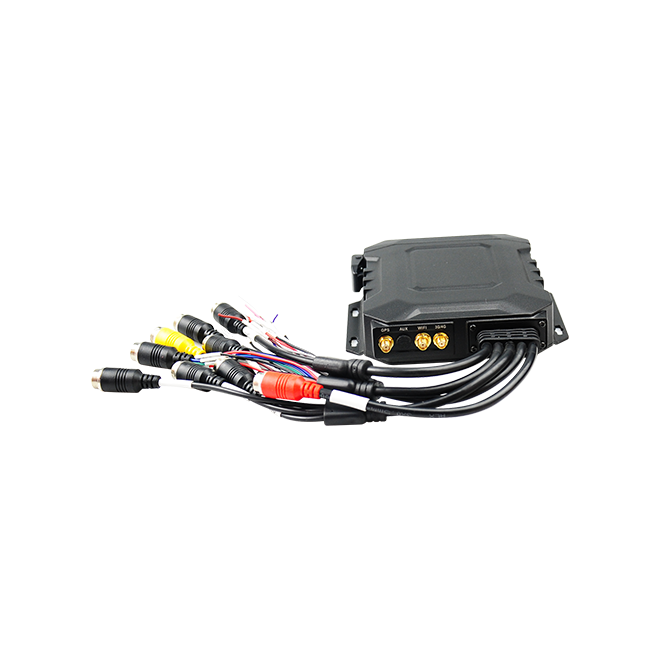

HD Car SSD Video Recorder
Features
4G, GPS/BD, WIFI, SSD, dual SD card, waterproof, moisture-proof, dust-proof
Product Description
The M32H series is a dedicated vehicle audio and video surveillance product that uses a high-speed processor and embedded operating system. It has the main features of being waterproof, dustproof, and highly stable. It can support 1 2.5-inch SSD or HDD bare disk direct plug-in access. The SDD hard disk structure can increase the data transmission and storage speed by 3-5 times compared to similar products. The M32H series products can also realize 4-channel 1080P (AHD analog high definition), 720P, D1 and other optional formats of video recording, which is suitable for various types of buses, sanitation vehicles, passenger buses and other vehicle-mounted video surveillance needs.
Product Parameters
| project | Parameter Description | |
| Audio and video input | Video Input | Optional: 4-channel AHD, 1-4-channel IPC input, support combined input |
| Audio Input | 4-way audio input | |
| Audio and video output | Video Output | 1 channel optional: CVBS or VGA video output |
| Voice Output | 1 channel voice output | |
| Audio and video
parameter encoding |
Video Encoding | Optional: H.265, H264 encoding |
| Video distribution rate | Up to 1080P, 720P, D1 encoding | |
| Audio Encoding | Optional: G.726, G711A, G711U encoding | |
| Storage Space | harddisk | 1 2.5-inch optional: SSD/HDD hard disk |
| SD Card | Support 2 SD cards | |
| Wireless network | 4G Wireless | Supports 1 SIM card, optional: all major communication modules in the world |
| WIFI | Optional 2.4G/5.8G | |
| Positioning method | BeiDou IGPS | Support hybrid positioning, speed detection and time synchronization |
| Serial Port | Supports 1 RS232, 1 RS485, and can be connected to external sensors | |
| IO | Support 2-way level input | |
| Intercom | 1-way dedicated intercom hand mark interface | |

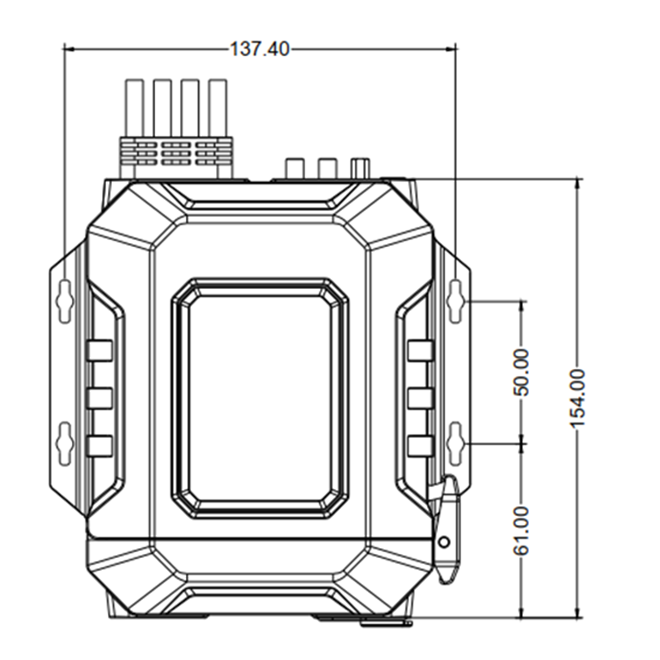

| Physical specifications | size | 154mm(L)*148mm(W)*39mm(H) |
| weight | 1007g | |
| Work Environment | Operating temperature | -20~+60℃ |
| Operating humidity | 10%-95% (no condensation) | |
| other | Operation Mode | UI, remote control, mobile APP, WEB |
| Gravity sensor | Built-in Gsensor | |
| Enhanced version | USB | Added USB2.0 interface to support data export and external engineering tool |
| IO | Add 2 level inputs, 2 analog inputs, 2 alarm outputs | |
| Network port | Optional: Support external IPC , support hybrid NVR function | |
| Configurable AI algorithms | Driver identification, crowd counting, assisted driving, etc. | |
