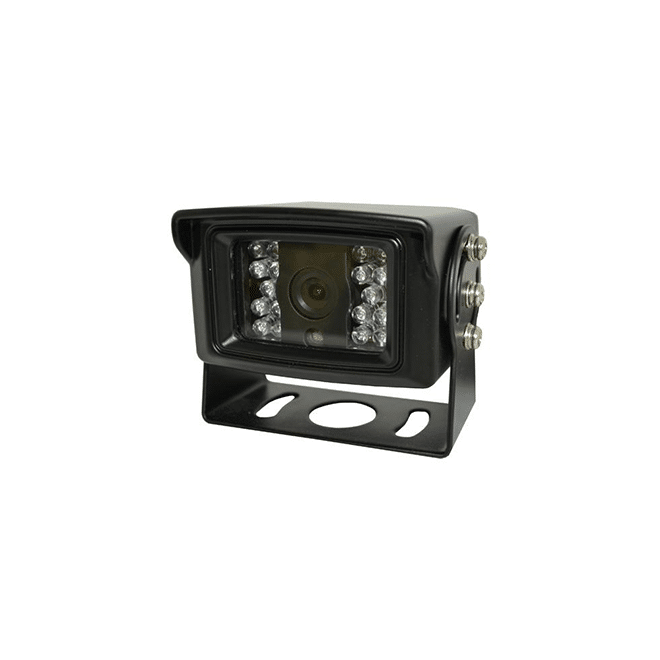

806 vehicle-mounted infrared camera
Features
Product Description
Product features :
◎ Exquisite design, exquisite workmanship, precise circuit and rigorous structure, embodying the highest technology ;
◎ Wide-angle adjustable bracket, the angle can be adjusted at will during the installation and fixing process ;
◎ Provide indoor and outdoor sunshade protection cover ;
◎ Adopt 4 arrays of imported IR LED lights, infrared distance 8 meters ;
◎ Waterproof sealed aluminum shield, using special waterproof treatment materials, reaching IP66 waterproof effect ;
◎ Integrated structure, shockproof and anti-loosening design ;
◎ Suitable for monitoring in various vehicle environments ;
◎ Image: positive image / mirror image.
◎ Appearance color : black ;
◎ Special aviation interface design (aircraft mother head definition: 1 , power positive, 2 , ground, 3 , audio positive, 4 , video positive)
Product Parameters
| model | MX-AHDM-806A-NNP-005H |
| Image Sensor | 1/4″ CMOS AHD |
| Resolution | 720P |
| Pixel | 1280 ( H) x 720(V) |
| Lenses | Standard 2.8mm lens |
| Minimum illumination | 0Lux |
| Backlight compensation | built-in |
| Shutter speed | 1/53~1/100,000 (seconds) |
| White Balance | Auto Tracking White Balance |
| Signal-to-Noise Ratio | Greater than 50db (AGC OFF) |
| Video Output | 1.0Vp-p,75Ω |
| power supply | DC12V ± 10% |
| Power consumption | ≤ 3W |
| Operating temperature | -20 ℃ ~ +60℃ |
| Infrared wavelength | 850nm |
| Number of infrared lights | 4 array LED lights |
| Infrared light irradiation distance | 8M |
| Infrared light illumination | >3Lux |
| jack | VIDEO OUT ( Professional aviation interface ) |
| Dimensions | 67mm*48mm*68mm |
Recommended products
Related products
-
Car Camera
110B vehicle-mounted HD full-color camera
-
Car Camera

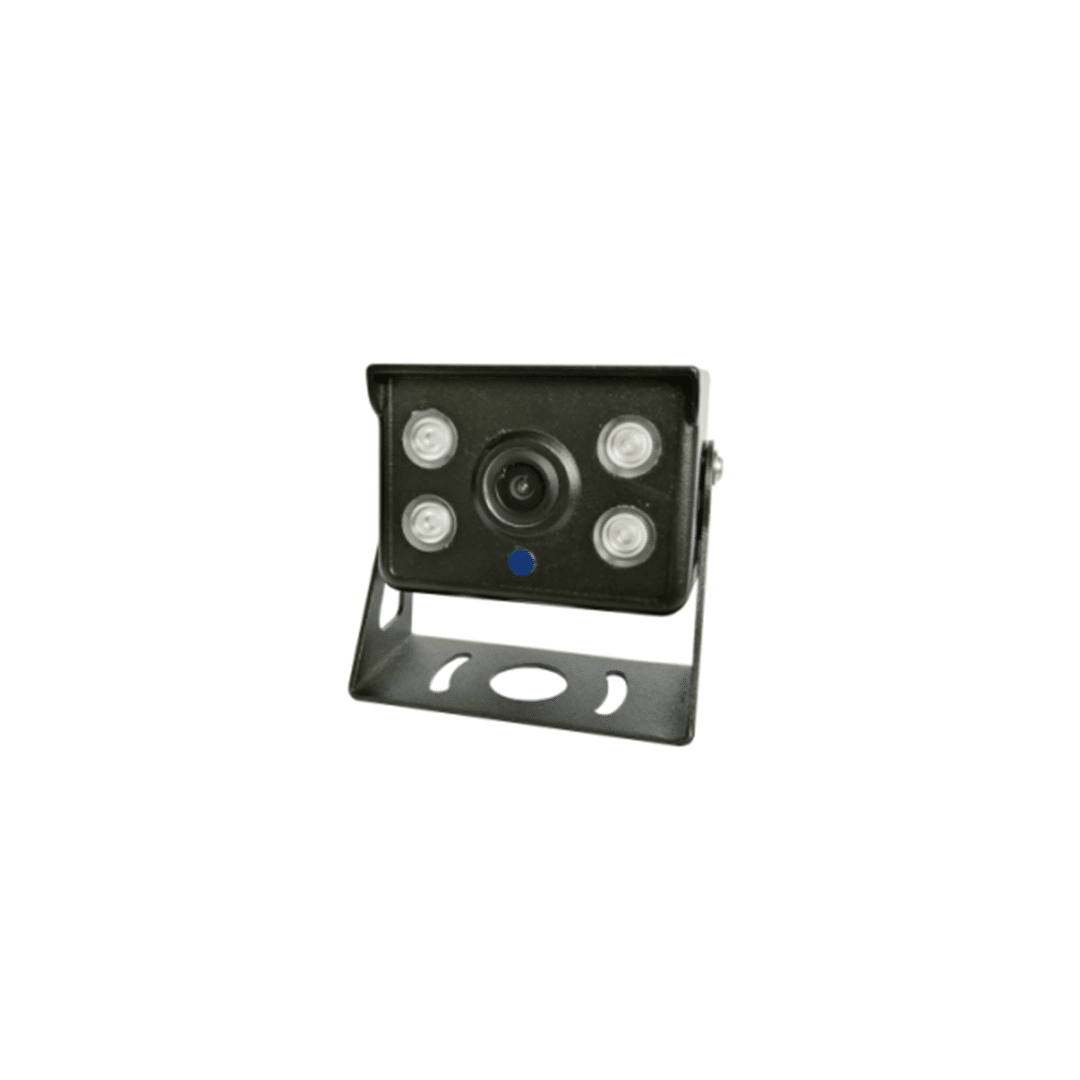

610 vehicle-mounted infrared camera
-
