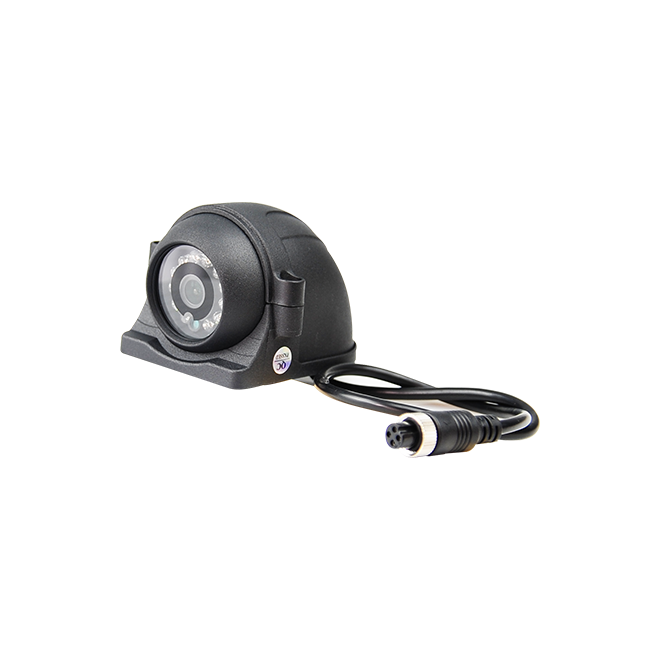

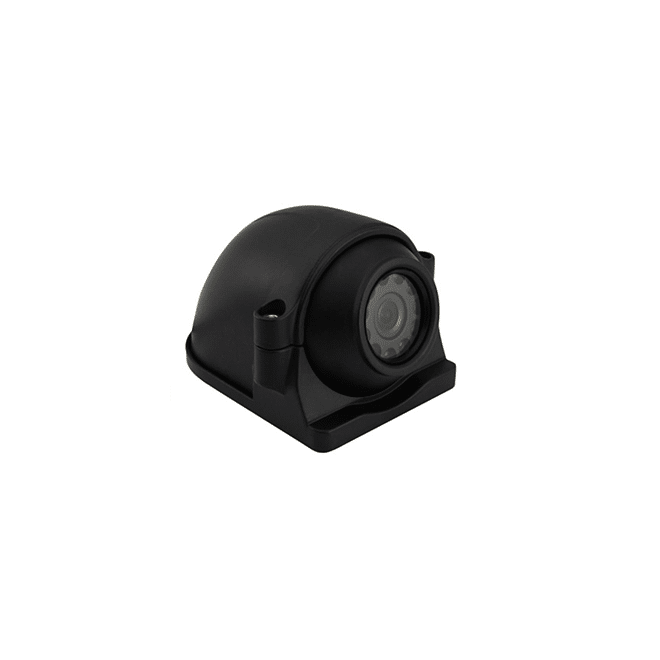

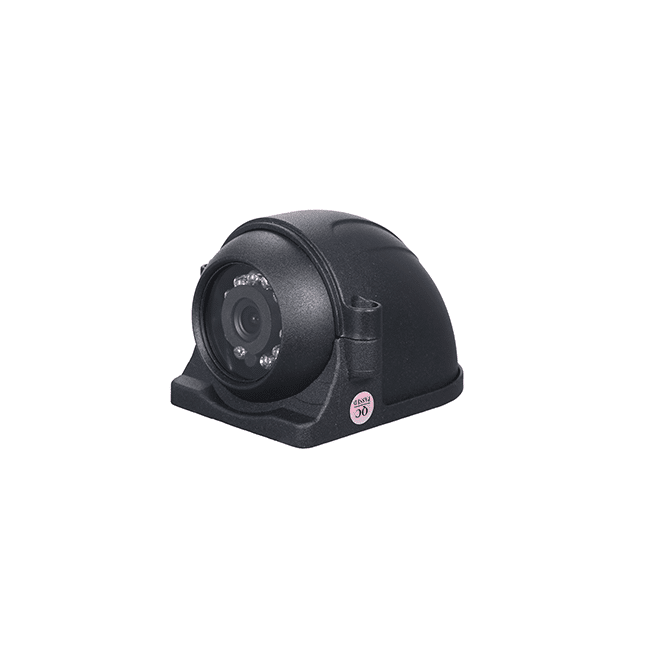

701 vehicle-mounted infrared camera

Features

1080P, waterproof, moisture-proof, dust-proof, night vision, sideways installation, installation accessories

vehicle-mounted infrared camera Features:

Exquisite design, exquisite workmanship, precise circuit and rigorous structure, reflecting the highest technology;
Wide viewing angle adjustable bracket, the angle can be adjusted at will during installation and fixing;
Using 12 imported 5Phi IR LED lights, infrared distance is 5 meters;
Specialized for monitoring both sides of professional vehicles;
Waterproof sealed aluminum shield, using special waterproof treatment materials, reaching IP67 waterproof effect;
Integrated structure, shockproof and anti-loosening design;
Suitable for monitoring in various vehicle environments;
Image: positive image/mirror image.
Appearance color: black;
Specialized aviation interface design

project	parameter
model	MX-AHDH-701A-NNP-005H,2.8mm
model	MX-AHDM-701A-NNP-005H,2.8mm
Image Sensor	1/2.9″ CMOS AHD/1/4″ CMOS AHD
Resolution	1080P/720P
Pixel	1920 ( H) x 1080(V)/1280 ( H) x 720(V)
Lenses	Standard 2.8mm/3.6mm lens
Minimum illumination	0Lux
Backlight compensation	built-in
Shutter speed	1/53~1/100,000 (seconds)
White Balance	Auto Tracking White Balance
Signal-to-Noise Ratio	Greater than 50db (AGC OFF)
Video Output	1.0Vp-p,75Ω
power supply	DC12V ± 10%
Power consumption	≤ 3W
Operating temperature	-20 ℃ ~ +70℃
Infrared wavelength	850nm
Number of infrared lights	Φ 5 12LED lights
Infrared light irradiation distance	5M
Infrared light illumination	＞3Lux
