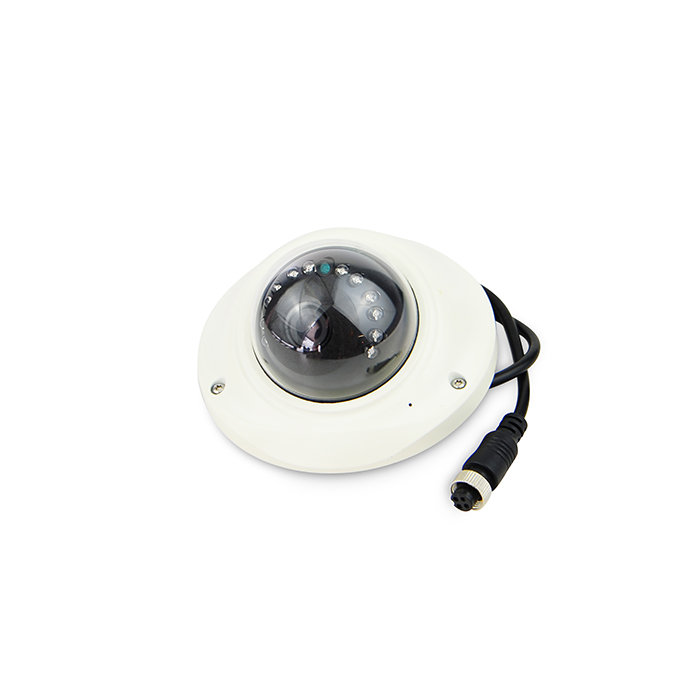

610 vehicle-mounted infrared camera

Features

1080P, dust and dust proof, night vision, inverted installation, installation accessories

vehicle-mounted infrared camera Features:

Low power consumption, easy heat dissipation, good color reproduction, clear picture quality;
The conch shell has a delicate, beautiful and fashionable appearance;
Fashionable appearance, high strength , and highly resistant to impact damage;
Adopt imported lens to prevent water vapor from affecting the image;
Using 12 imported Φ 5 PCS LED lights, shooting distance 10-15m;
Appearance color: ivory;
Adopt imported lens to prevent water vapor from affecting the image;

model	MX-AHDH-610A-NNP-005H,2.8mm
Image sensor + DSP	1/2.7 inch CMOS AHD
Image pixels	1920(h)*1080(v)
Video frame rate	PAL : 1080p@25fps , NTSC : 1080p@30fps
Video Output	AHD
Transmission distance	Over 500m via 75-3 coaxial cable
Minimum illumination	Daytime: 0.01Lux , 0Lux (IR ON)
Lenses	2.8 mm
Synchronous system	Internal synchronization
Electronic shutter	PAL : 1/25-1/50000 sec., NTSC : 1/30-1/60000 sec.
Signal-to-Noise Ratio	More than 50dB
Day and night use	Auto (ICR)/ Color /B/W
Infrared LED	12 million Φ512 pcs LED
Infrared distance	10-15 meters
OSD Menu	support
Coaxial cable control	support
OSD/UTC Language	EN , CN , DE , FRA , IT , ES , PL , RU , PT , NL , TR
Wide dynamic range	support
Reduce noise	3D Noise Reduction
White Balance	Automatic / Manual
Gain Control	automatic
Operating temperature	-20°C~+70°C / less than 95%RH (no condensation)
power supply	DC 12V +/- 20%

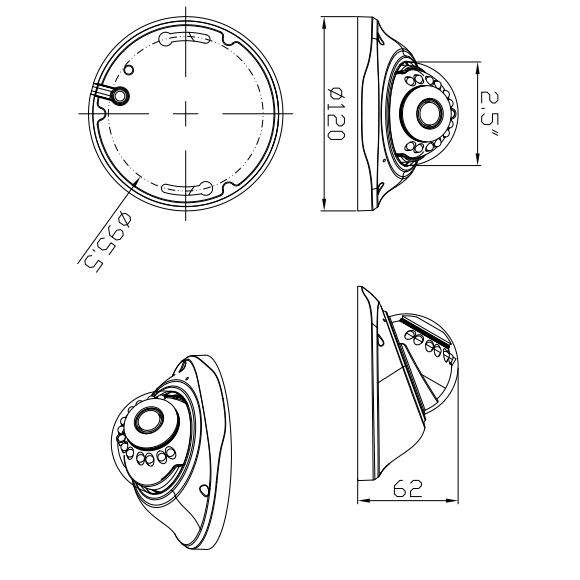

size	Φ120* 62mm
shell	Ivory metal housing
