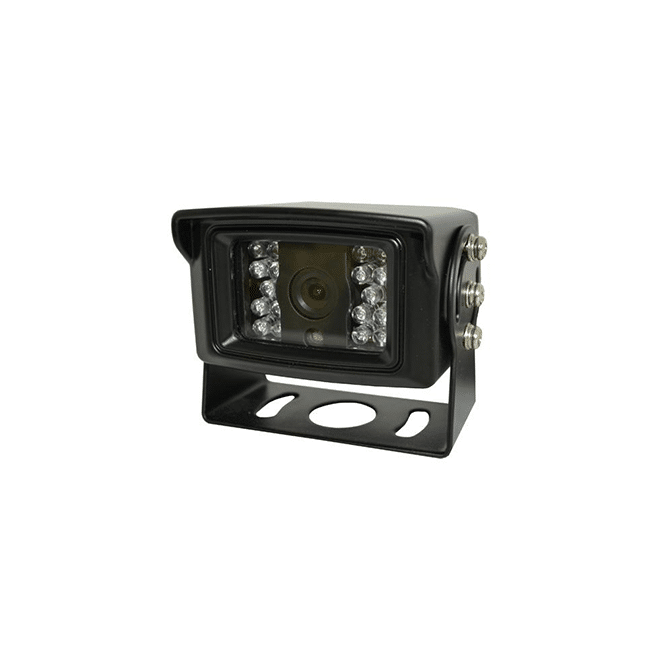

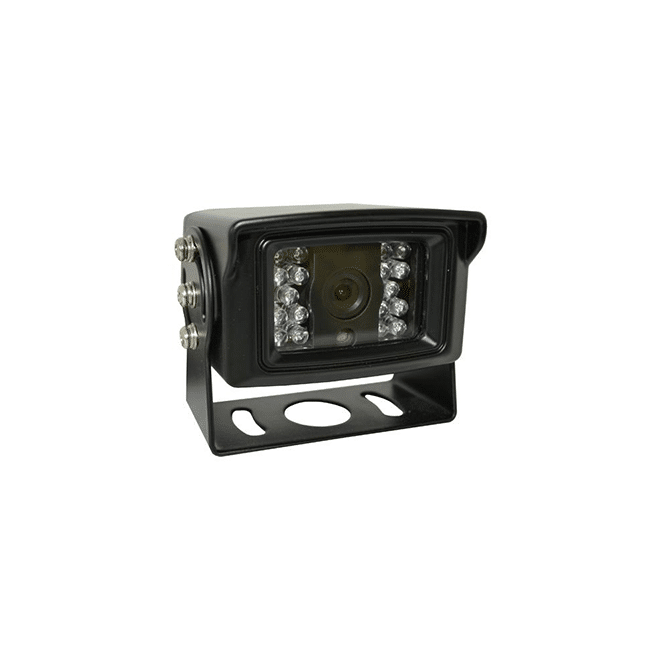

803 vehicle-mounted infrared camera

803 vehicle-mounted infrared camera

Features

1080P, waterproof, moisture-proof, dust-proof, night vision, installation accessories

Product Description

Features:

◎ Exquisite design, exquisite workmanship, precise circuit and rigorous structure, reflecting the highest technology;

◎Wide viewing angle adjustable bracket, the angle can be adjusted at will during installation and fixing;

◎Provide indoor and outdoor sunshade protection covers;

◎Using 18 imported Φ5 IR LED lights, infrared distance 10 meters;

◎Waterproof sealed aluminum shield, using special waterproof treatment materials, reaching IP67 waterproof effect;

◎Integrated structure, shockproof and anti-loosening design;

◎Suitable for monitoring in various vehicle environments;

◎Image: positive image/mirror image.

◎Appearance color: black;

◎Specialized aviation interface design

Product Parameters

project parameter
model MX-AHDH-803A-NNP-005H,2.8mm /
MX-AHDM-803A-NNP-005H,2.8mm
Image Sensor 1/2.9″ CMOS AHD/1/4″ CMOS AHD
Resolution 720P/720P
Pixel 1280 ( H) x 720(V)/1280 ( H) x 720(V)
Lenses Standard 2.8mm/3.6mm lens
Minimum illumination 0Lux
Backlight compensation built-in
Shutter speed 1/53~1/100,000 (seconds)
White Balance Auto Tracking White Balance
Signal-to-Noise Ratio Greater than 50db (AGC OFF)
Video Output 1.0Vp-p,75Ω
power supply DC12V ± 10%
Power consumption ≤ 3W
Operating temperature -20 ℃ ~ +70℃
Infrared wavelength 850nm
Number of infrared lights Φ 5 18LED lamp
Infrared light irradiation distance 10M
Infrared light illumination >3Lux
jack VIDEO OUT ( Professional aviation interface )

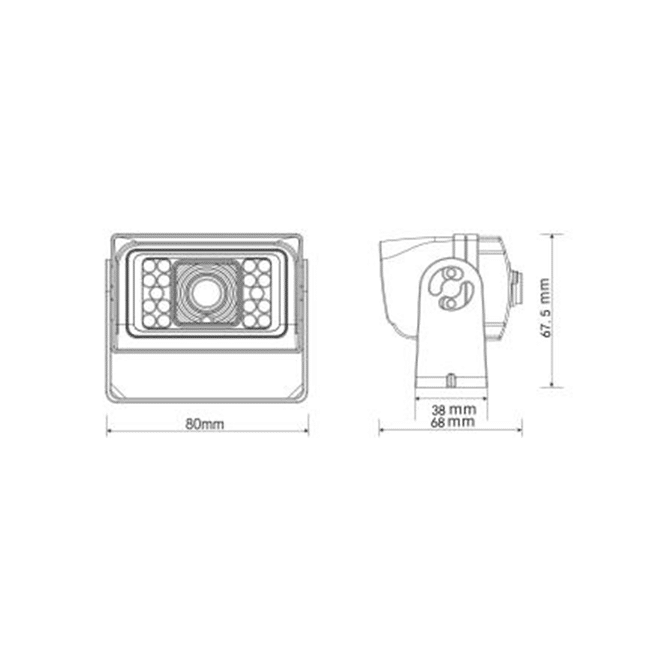

Dimensions 80mm*68mm*67.5mm
