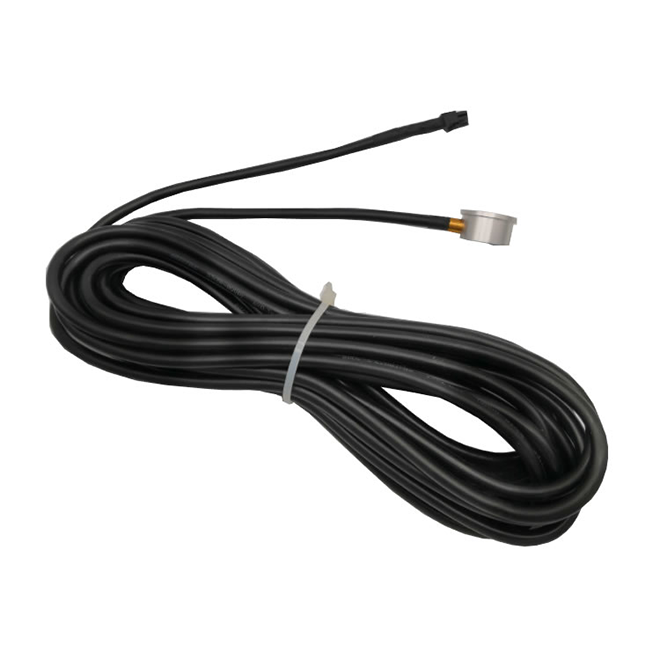

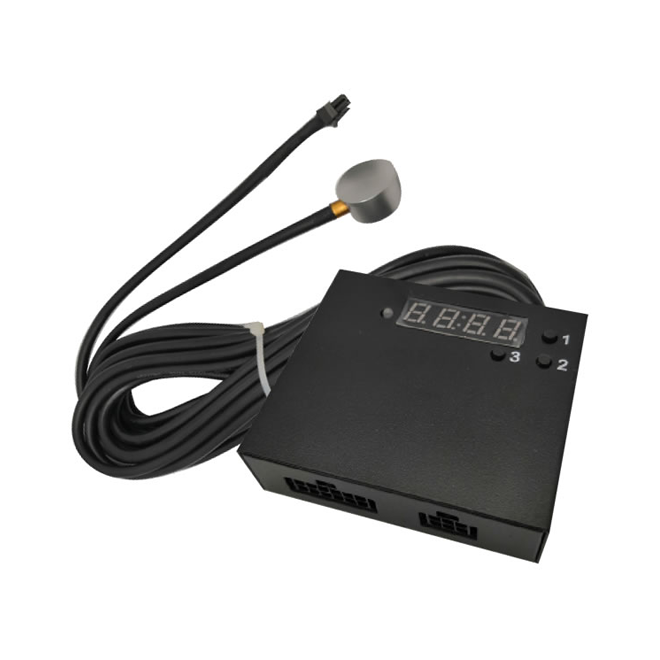

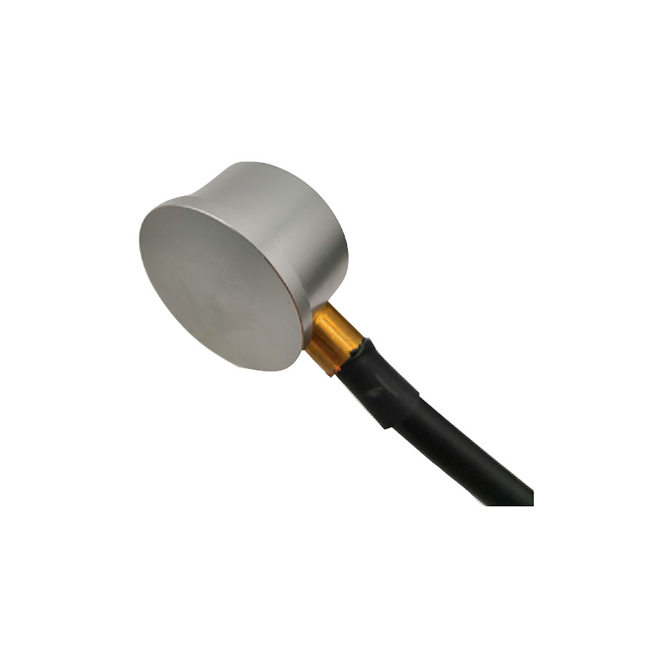

Oil level sensor

Oil level sensor

Features

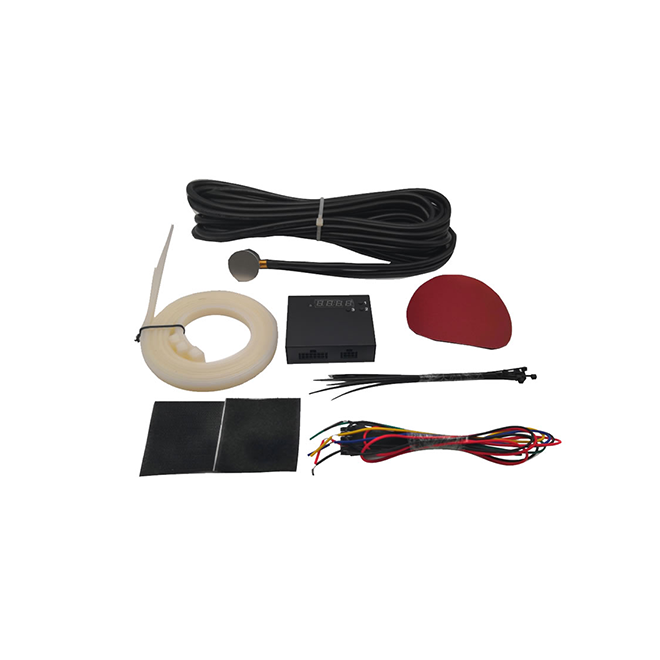

Sensors, Installation Accessories

Product Description

The ultrasonic oil level sensor can be used for various vehicles (such as logistics vehicles, taxis, buses, passenger vehicles, etc.) to digitally record vehicle refueling and fuel consumption, prevent oil theft, avoid waste of resources, improve operational efficiency, improve traffic safety, and strengthen operational management.

Product Parameters

project Parameter Description
Operating voltage DC5V, 12~48V The higher the power supply, the smaller the current
Working current ≤25mAContainer thickness ≤2cm
Measuring range 5~150cm
Liquid measurement accuracy ≤5mm
Measurement resolution 0.1mm
Sensor explosion-proof grade Intrinsically safe Exia II CT6 Flameproof Exd II CT5
Protection level IP67 dust and water resistance
Operating temperature -20 ~ +70℃
Storage temperature -25 ~ +75℃
