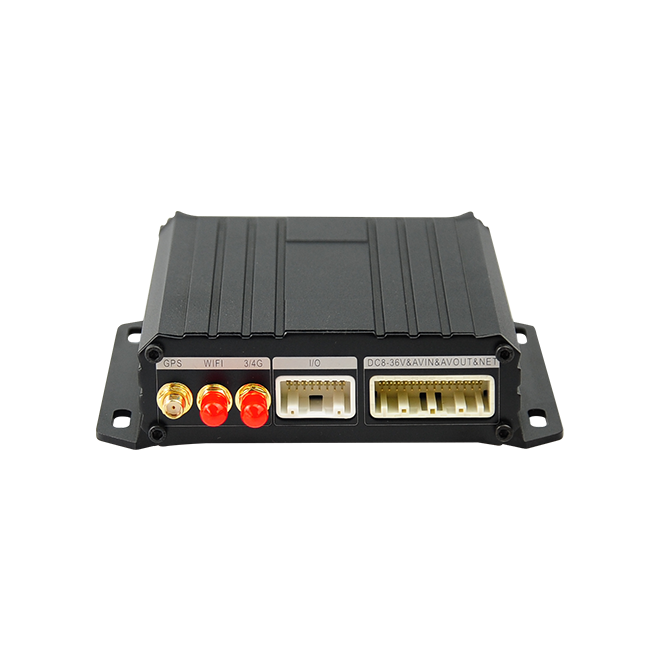

HD Car Dual Card Video Recorder
Features
4G, GPS/BD, WIFI, dual SD card, people counting
Product Description
M16H is a cost-effective and flexible device developed specifically for vehicle-mounted and remote video surveillance. It is an upgraded version of our M10H/M12H. It adopts HI3520D high-speed processing chip and stable embedded system, and uses advanced H.265 video compression/decompression technology, 4G network technology, GPS/BD positioning technology, and WIFI technology. It can realize 1080P, 720P, D1 resolution recording, vehicle driving information recording and remote video upload. In conjunction with the dispatch monitoring platform, it can realize central remote video monitoring with alarm linkage, intelligent vehicle dispatch management, and playback analysis based on the central database. The product has the characteristics of small size, simple appearance, flexible and convenient installation, comprehensive functions, and high reliability, providing customers with more comprehensive, safe, and high-quality services.
Product Parameters
| project | Parameter Description | |
| Audio and video input | Video Input | AHD input: 4 1080
IPC input: expandable 1-4 |
| Audio Input | 3-way analog audio input, Mic input | |
| Audio and video output | Video Output | Default 1-channel CVBS output (VGA output optional) |
| Voice Output | 1 channel voice output | |
| Audio and video
parameter encoding |
Video Encoding | H.264 Main Profile/H.265 |
| Video distribution rate | 1080P, 720P, D1 | |
| Audio Encoding | Default G.726, G.711A optional | |
| storage | SD Card | Support 2 SD cards |
| Wireless network | 4G Wireless | Support 1 SIM card, optional: all mainstream communication modules in the world |
| WIFI | Optional 2.4G/5.8G | |
| Positioning method | BeiDou IGPS | Support hybrid positioning, speed detection and time synchronization |
| interface | USB | USB2.0 interface, supports exporting data, external engineering treasure |
| Serial Port | Supports 1 RS232, 1 RS485, and can be connected to external sensors | |
| IO | Support 4 level inputs and 1 output | |
| Network port | Support external IPC and hybrid NVR function | |
| Intercom | 1-way dedicated intercom hand mark interface | |

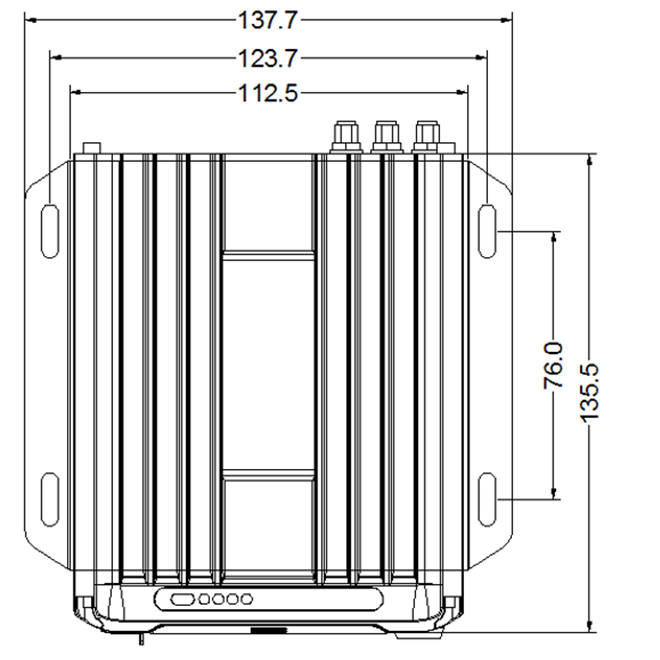

| Physical specifications | size | 135.5mm (L)*137.7mm (W)*36.5mm (H) |
| weight | Bare machine: 0.5kg
Cased: 0.75 kg (based on M16H-DGNE-L) |
|
| Work Environment | Operating temperature | -20~+70℃ |
| Operating humidity | 8%-90% (no condensation) | |
| other | Operation Mode | Remote Control |
| Gravity sensor | Built-in GSensor | |
| Configurable AI algorithms | Driver identification, crowd counting, assisted driving, etc. | |
