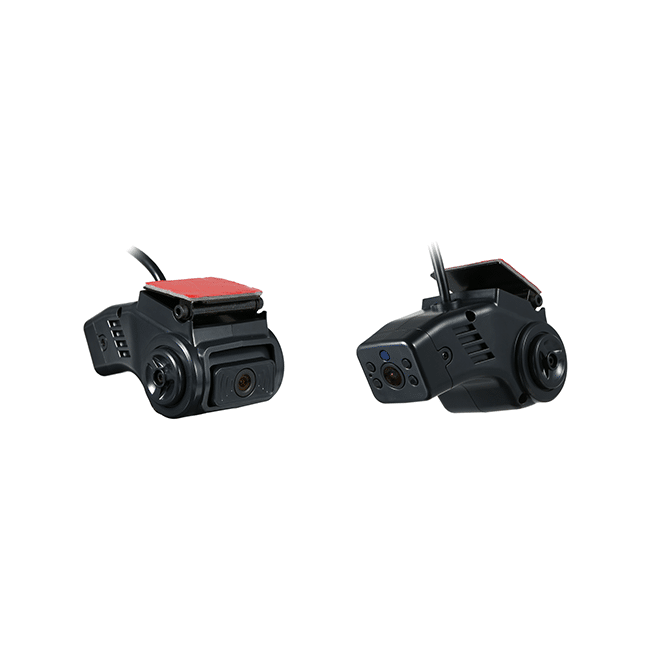

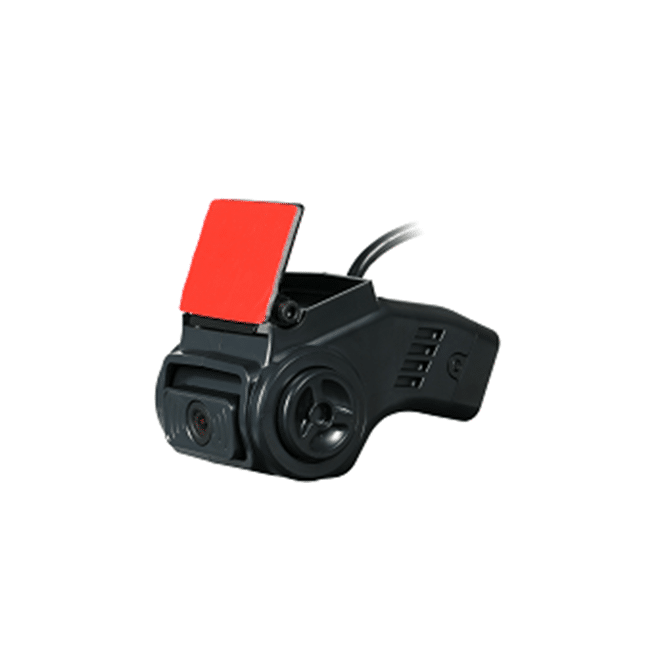

808 vehicle-mounted high-definition dual-channel camera
Features
1080P, dust and dust proof, night vision, installation accessories, dual cameras
Product Description
Features:
◎Low power consumption, easy heat dissipation, good color reproduction, clear picture quality;
◎Dual-lens design is exquisite, beautiful and fashionable;
◎Fashionable appearance, plastic material, with car-specific 3M adhesive sticker;
◎Using 4 imported φ5 IR LED lights, shooting distance 2-3m;
◎Infrared automatically turns on when the light is lower than 10Lux;
◎Adopt imported lens to prevent water vapor from affecting the image;
◎Appearance color: black;

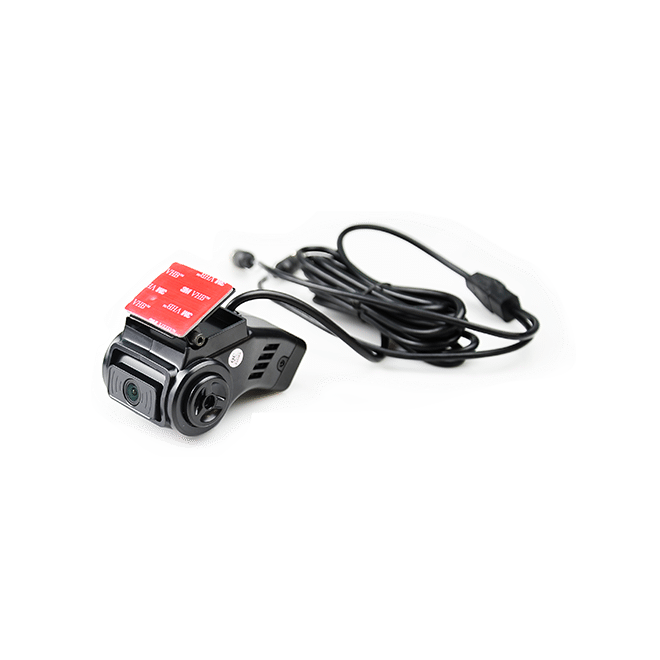

◎Specialized aviation interface design, 3-meter wiring;
◎Definition of departmental standards/with audio.
Product Parameters
| project | parameter |
| model | MX-AHDH-808A-ANP-005H,2.8mm |
| MX-AHDM-808A-ANP-005H,2.8mm | |
| Image Sensor | 1/2.9″ CMOS AHD/ 1/4″ CMOS AHD |
| Resolution | 1080P/720 |
| Pixel | 1920 ( H) x 1080(V)/1280 ( H) x 720(V) |
| Lenses | The front of the car is equipped with a 2.8mm lens, and the interior of the car is equipped with a 2.1mm lens. |
| Minimum illumination | 0.1Lux in front of the car , 0Lux inside the car with infrared |
| Audio | built-in |
| Backlight compensation | built-in |
| Shutter speed | 1/53~1/100,000 (seconds) |
| White Balance | Auto Tracking White Balance |
| Signal-to-Noise Ratio | Greater than 50db (AGC OFF) |
| Video Output | 1.0Vp-p,75Ω |
| Power Required | DC12V/600mA |
| Power consumption | ≤ 5.6W |
| Infrared wavelength | 850nm |
| Infrared light irradiation distance | 2-3M |
| Infrared light automatically turns on | Night / Day / Switch |
| Infrared light illumination | >3Lux |
| jack | VIDEO OUT ( Professional aviation interface ) |

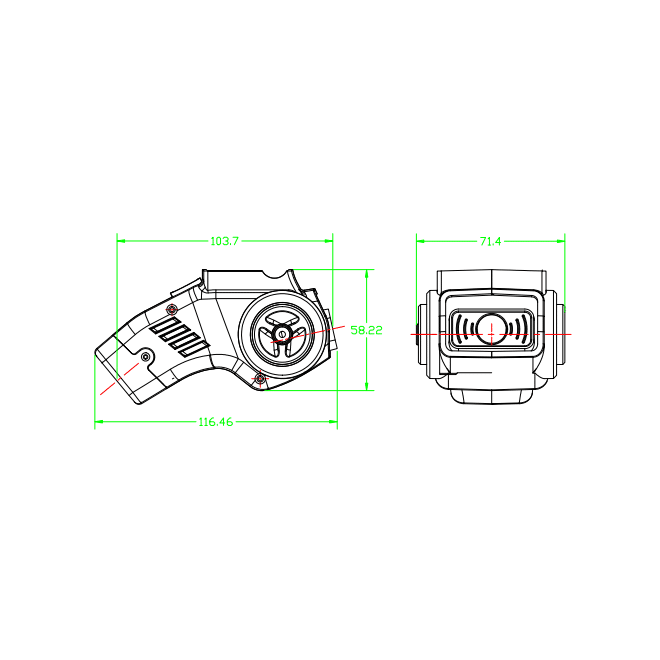

| Dimensions | 116.46mm*71.4mm*58.22mm |
