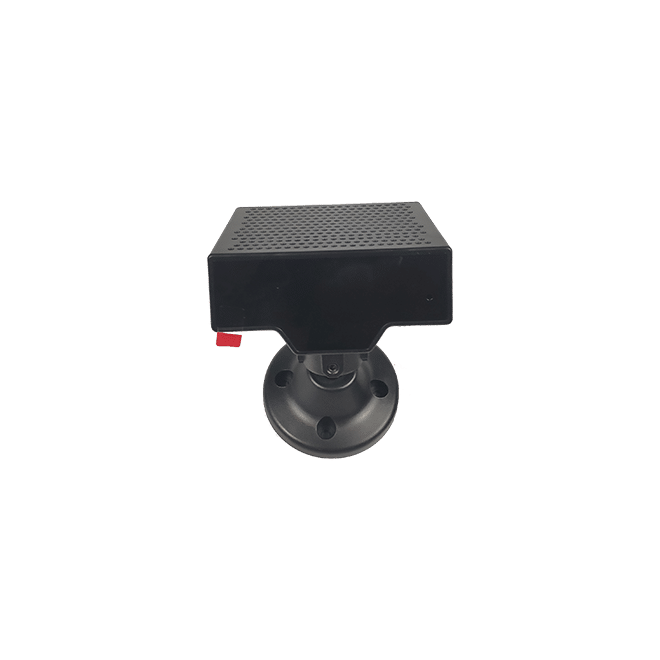

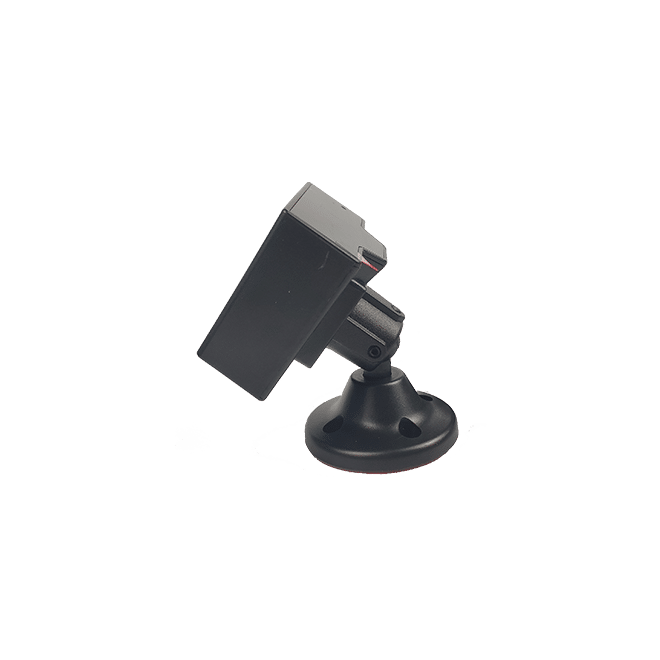

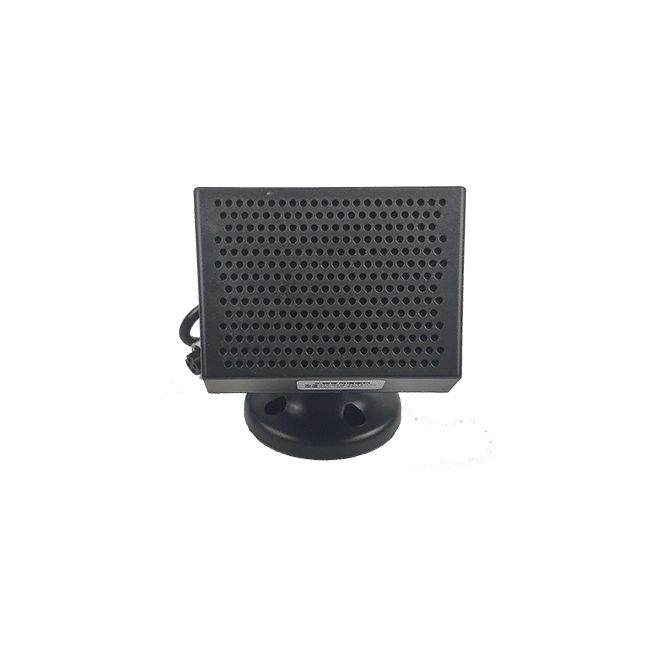

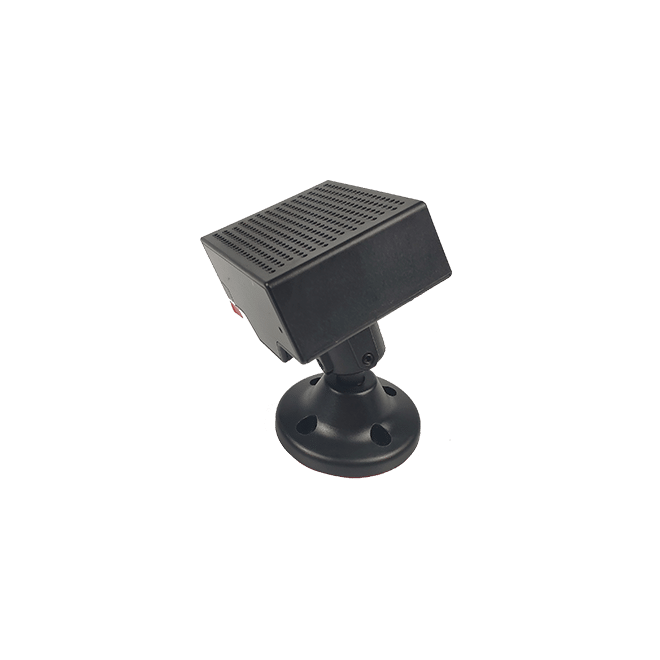

808 DSM Anti Fatigue Driving Camera
Features
Product Description
Anti Fatigue Driving Camera Product features:
◎Adopt 1.3 million pixel progressive scan CMOS to capture motion images without jagged edges
◎Support coaxial high-definition output, clear and delicate images, resolution up to 960p
◎Low illumination, 0.01Lux @ (F1.2,AGC ON), 0 Lux with IR
◎940 single-pass filter, pure black and white mode.
◎The camera has strong environmental adaptability (4000V video lightning protection, anti-static interference circuit design, -20~70℃ operating temperature range)
◎Wide voltage design, effectively reducing the impact of voltage fluctuations on the equipment
◎Adopt full glass lens, the angle is more suitable for vehicle-mounted, and the image quality is clearer
◎Adopt Taiwan Dingyuan infrared lamp, high brightness, high reliability and long life
◎Support effect debugging and match various algorithms.
| project | Parameter Description |
| model | MX-AHD-828A-NNP-005H,6mm(960P) |
| Module Type | 1 million pixel AHD module |
| Maximum resolution | 1280(H) x 720(V) |
| Standard | PAL |
| Total pixels | 1.3MP |
| Minimum illumination | 0.01LUX |
| Electronic shutter | PAL : 1/50 to 1/100,000s |
| Signal-to-Noise Ratio | > 41dB |
| White Balance | Auto |
| Day and night switch | Black and White Mode |
| Digital WDR | Open |
| Mirror | no |
| UTC Function | Open |
| language | Default English |
| Video Output | 1.0Vp-p composite output, 75Ω |
| Lenses | 6MM,940 narrow band filter |
