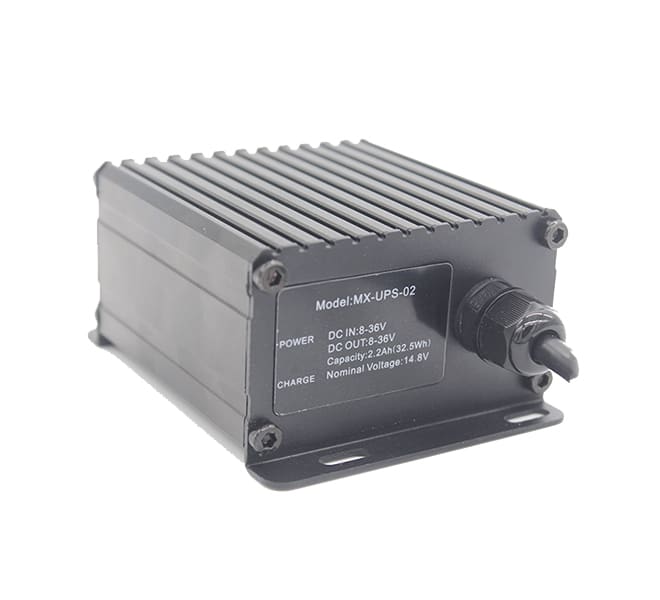

Uninterruptible Power Supply (UPS)

Features

Large capacity battery, installation accessories

The UPS wiring diagram is as follows:

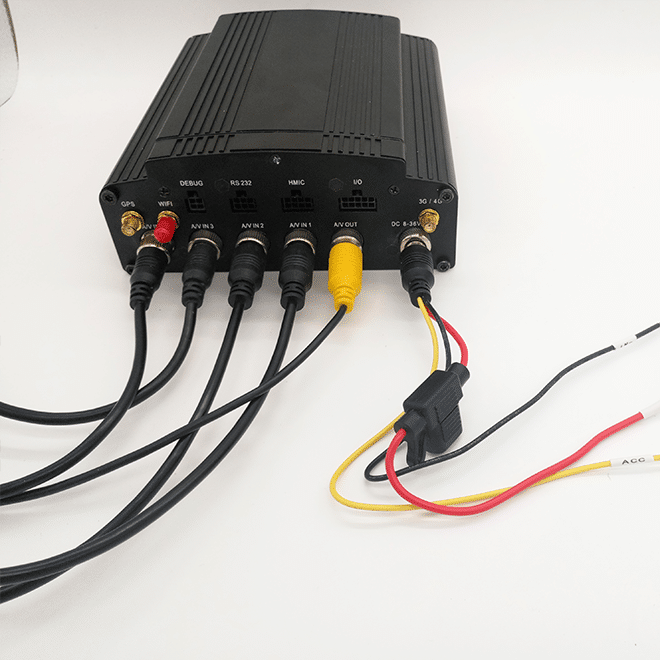

1 : Device wiring diagram without UPS

2 : Device wiring diagram with UPS

project		Parameter Description
conventional	Shell material	Aluminum alloy profiles
	Charging input voltage range	When the UPS is not working, the voltage supplied to the device is DC8V-36V
	Charging input voltage range	When UPS is working, the voltage supplied to the equipment is DC14.8-16.8V
	Monomer battery shell material	Nickel plated steel
	Nominal capacity	2.2Ah, capacity after fully charged and discharged to cut-off voltage at 0.2C
Voltage and Current	Nominal voltage	Normal voltage: 14.8V
	Nominal voltage	Single battery operating voltage: 3.60V
	Charging voltage	Normal voltage: 16.8V
	Charging voltage	Average single string charging voltage: 4.20V
	Discharge cut-off voltage	Normal voltage: 11V
	Discharge cut-off voltage	Average single string discharge voltage: 2.75V
	Charging Current	1A/0.5C5A
	Charging time	＜2.5h/0.5C5A
	Normal operating current	＜7A/2C5A
	Overcurrent protection	8-11A/3C5A (2 minutes)
Battery	Battery size	74×18.8x70mm
Battery	Total battery weight	About 700g
Operating temperature	Charge	0~45℃
	Discharge	-20~60℃
	Storage temperature	-5℃-35℃
