Car LED Panel

Car LED Panel

Car LED Panel
Car LED Panel - Image 2
Car LED Panel - Image 3
Car LED Panel - Image 4
Car LED Panel - Image 5

Features

LED,Mounting Accessories

Product Description



Product Introduction:

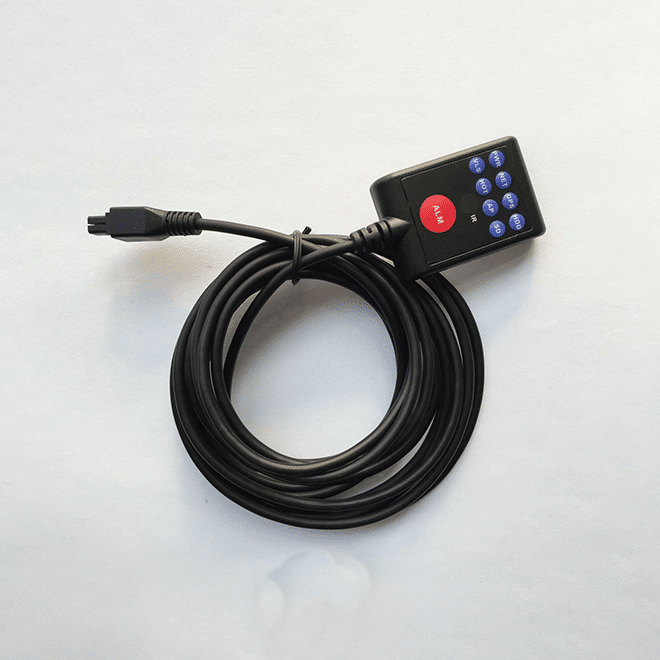

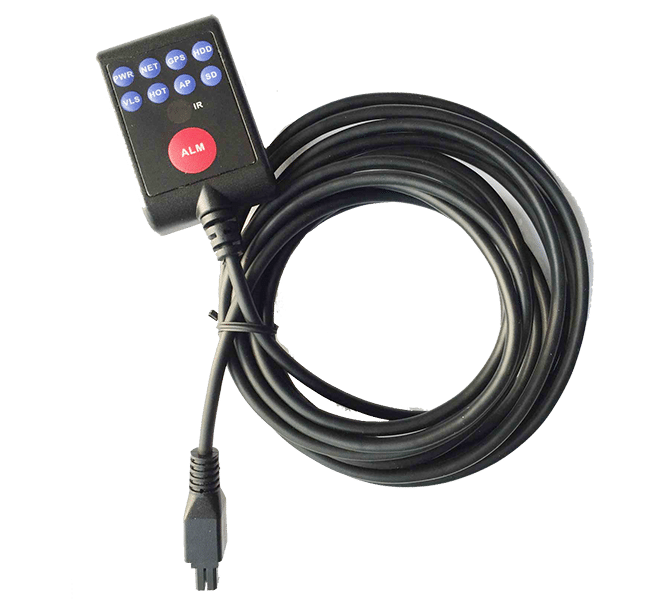

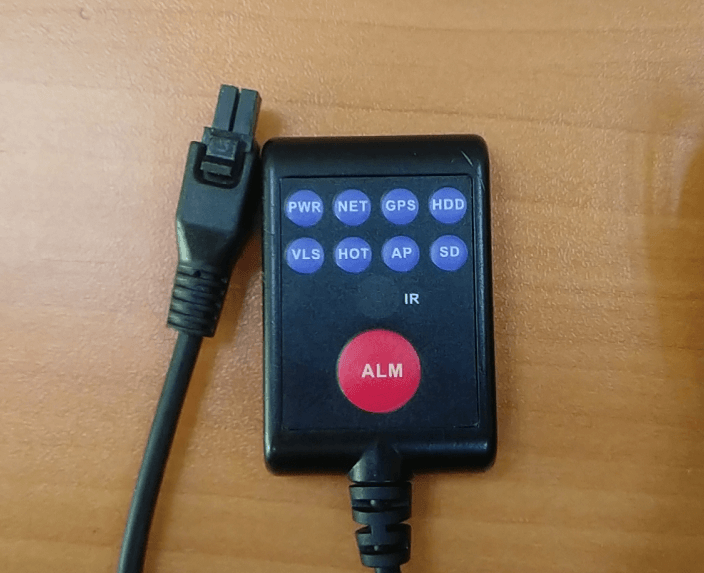

The LED panel indicator can be used to check the status of the device, and the remote control can be used to control the device. It is suitable for use when the device is installed in a hidden location and it is difficult to check the status and control. The panel also supports a one-button alarm function. Pressing the red ALM button on the panel can initiate an alarm to the platform.

Product Features

  • Built-in LED panel display
  • One-touch alarm button
  • Optional IR function
Product Parameters

Key functions

project Parameter Description
Indicator Lights PWR Power indicator
NET Network indicator light
GPS Satellite positioning indicator light
HDD Hard disk indicator
VLS Radar indicator light
HOT Heating indicator light
AP AP Indicator
SD SD card indicator
Sensor Light IR Proximity sensor
button ALM Alarm button

Interface definition:

Usage:
The device provides 12V power to the LED panel , the TX on the interface is connected to the RX of the device, and the RX on the interface is connected to the TX of the device ; in the serial port function menu on the device, the RS232 serial port function needs to be changed to the LED panel baud rate: 9600. After the change, save and restart the device, it can be used normally.
