Liquid level sensor

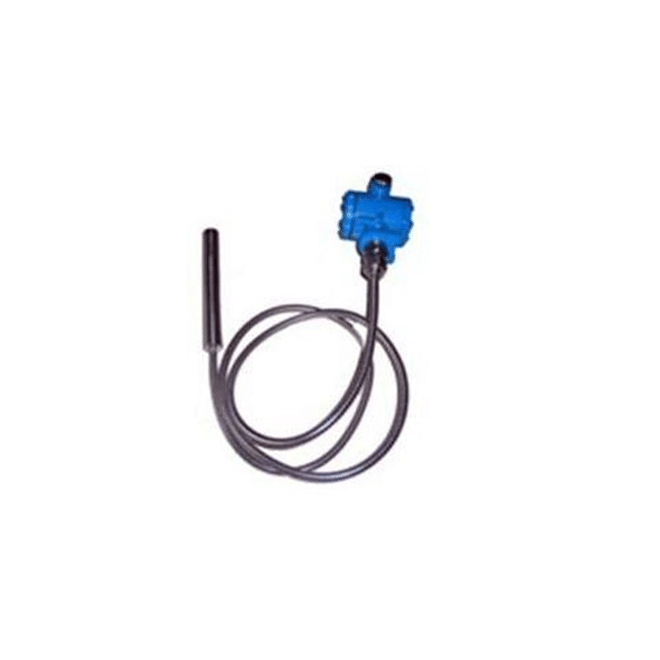

Liquid level sensor

Liquid level sensor

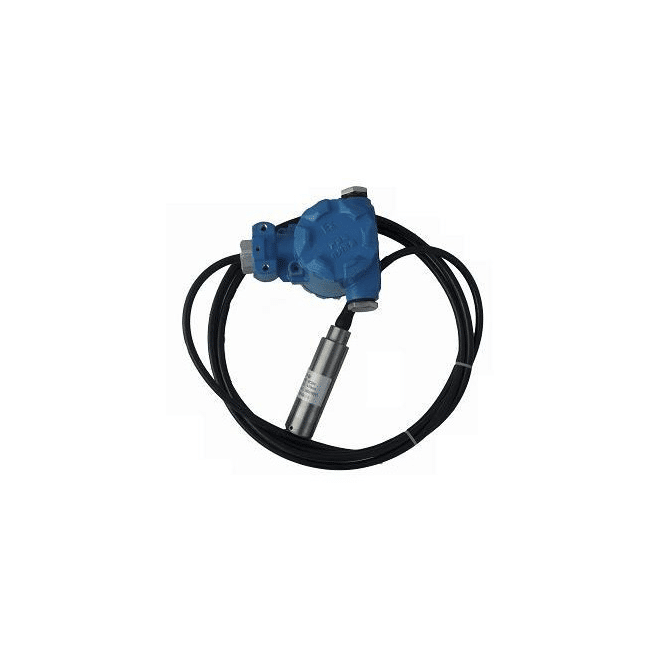

Liquid level sensor - Image 2

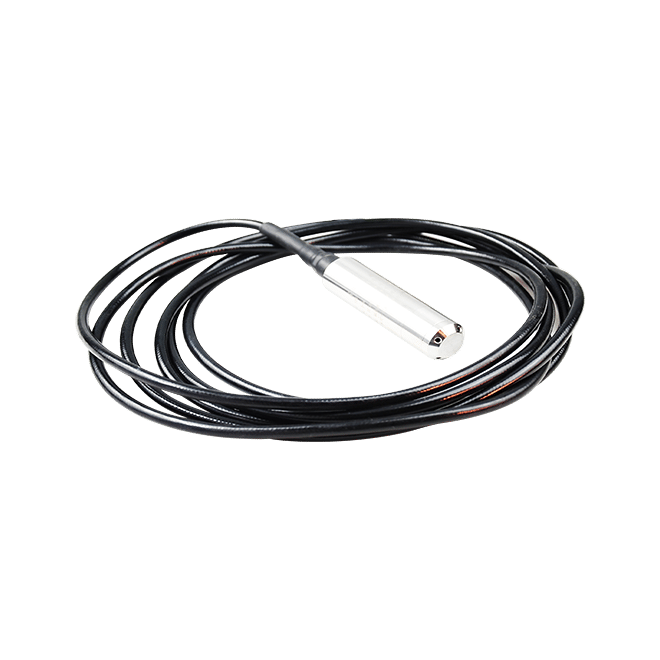

Liquid level sensor - Image 3
Liquid level sensor - Image 4

Features

Sensors, Installation Accessories

Product Description

It adopts imported diffused silicon piezoresistive core 316 all-stainless steel structure, and is mainly suitable for liquid level measurement and control of rivers, groundwater levels, reservoirs, water towers and containers.
This type of sensor is also commonly called: immersion liquid level sensor, immersion liquid level transmitter, liquid level sensor, liquid level transmitter, groundwater level sensor, groundwater level transmitter

Product Parameters

Range : 0-5M-10M-300M
Overall accuracy : 0.2%FS, 0.5%FS, 1.0%FS
Output signal : 4~20mA (two-wire system), 0~5V, 1~5V, 0~10V (three-wire system)
Supply voltage : 24DCV (9~36DCV)
Medium temperature : 0~85℃
Ambient temperature : Normal temperature (-20~85℃)
Load resistance : Current output type: maximum 800Ω;
Voltage output type: greater than 50K Ω
Insulation resistance : greater than 2000MΩ (100VDC
Sealing level : IP68
Long-term stability performance : 0.1%FS/year
Vibration influence : Within the mechanical vibration frequency of 20Hz~1000Hz, the output change is less than 0.1%FS
Signal interface : Four-core ventilation cable connection.
Connection method: immersion or installation
