4G/5G HD AI ball control

4G/5G HD AI ball control

4G/5G HD AI ball control
4G/5G HD AI ball control - Image 2
4G/5G HD AI ball control - Image 3
4G/5G HD AI ball control - Image 4

Features

4G, GPS/BD, WIFI, Bluetooth, dual SD card, large capacity battery, waterproof and moisture-proof, night vision, easy disassembly and assembly
Product Description

Product Introduction

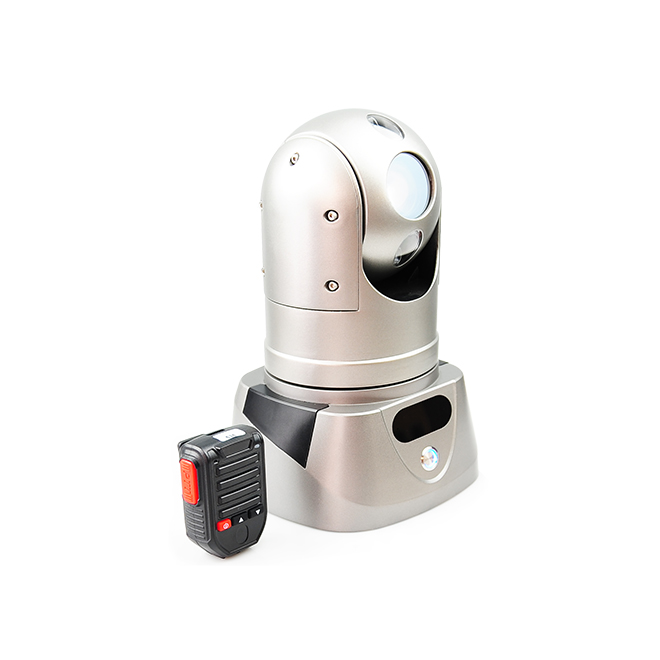

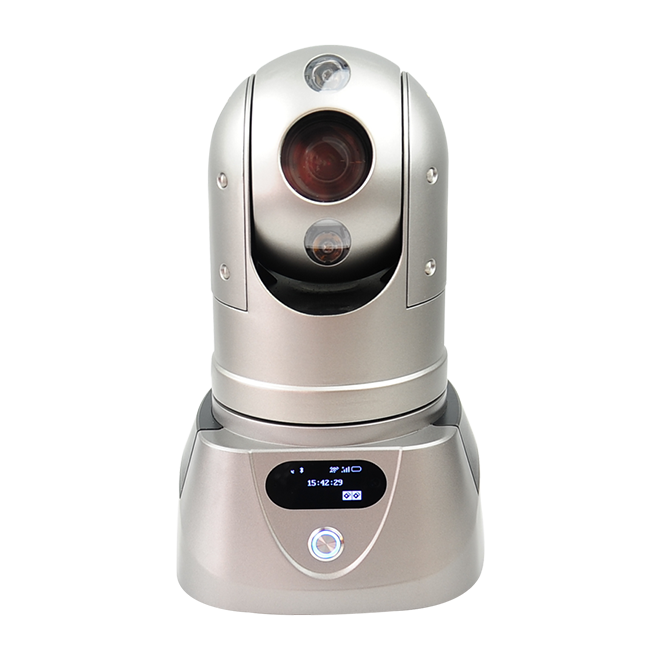

4G/5G HD AI ball control The M91A high-definition intelligent surveillance ball is a portable product that integrates video recording, high-definition video wireless transmission, voice monitoring, intercom, and remote control. It uses a high-speed processor and embedded operating system, combined with the most advanced H.265 audio and video compression, wireless network transmission, remote control and other technologies in the IT field. The product has a simple appearance, is easy to carry, flexible and convenient to install, has powerful functions, high reliability, and has super vibration resistance and waterproof characteristics. It is suitable for application environments with high mobility in the wild, such as: investigation, public security, traffic police, fire protection, transportation, armed police, courts, forestry, water conservancy, environmental protection, construction, aquatic products, insurance investigation and claims and other fields.

Product Features

  • Industrial-grade design
  • IP66 protection level
  • Portable installation and control
  • Support voice intercom and PTT cluster intercom functions
  • Built-in large-capacity battery, long-lasting work
  • 360° PTZ control
  • Support 4G, wired, WIFI

Product Parameters

project Parameter Description
Video Parameters Video Input/Output 1-channel AHD (analog movement) video input, 1-channel CVBS video output;
Video Encoding H.264 Main Profile/H.265
Video resolution 1080P/720P optional
Support Agreement GB28181 and other interoperability protocols
Audio parameters Audio Input/Output Support Bluetooth device and built-in MIC to switch input freely, Bluetooth device output
Audio Coding Default G.726, G.711A optional
storage SD Card Support 2 SD cards
Positioning method BeiDou/GPS GPS/BD module optional
Wireless network 5G/4G Supports one SIM card, optional: 5G module and all mainstream 4G communication modules in the world
WIFI 2.4G
Call the police IO alarm 1 IO/alarm input and 1 alarm output (optional)
PTZ Horizontal range/speed 360° continuous rotation / 120/s
Vertical range/speed -15-90/ 60/s
Preset Point 200
power supply Power Built-in lithium battery, can work continuously for about 15 hours during the day and about 10 hours at night, can be powered by an external power supply
Physical specifications size 170mm(W)*277mm(H)*170mm(D)

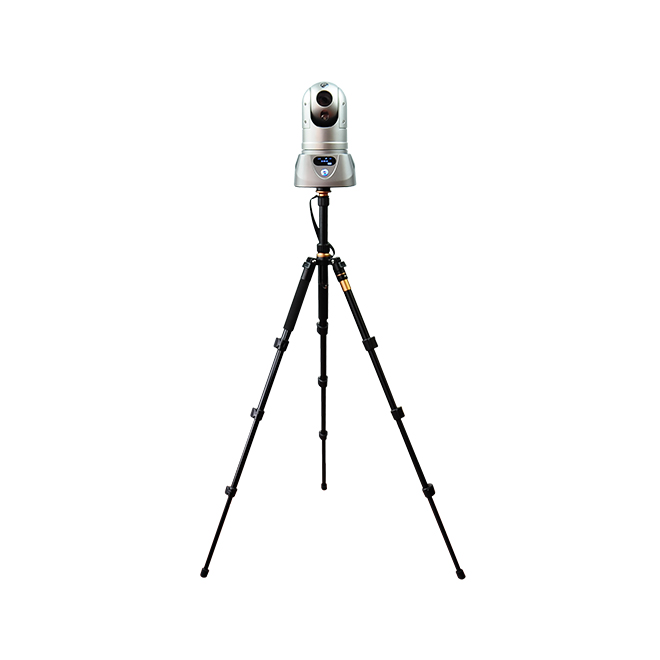

Bracket height Equipped with a tripod stand 1330mm (home machine height 1607mm)
weight Bare machine: 4.3kg
Packing: 11.3kg (based on M91H-DGWEN-L)
Work Environment Operating temperature -25℃～+60℃ (ambient temperature with good ventilation)
Operating humidity 10%～95% (no condensation)

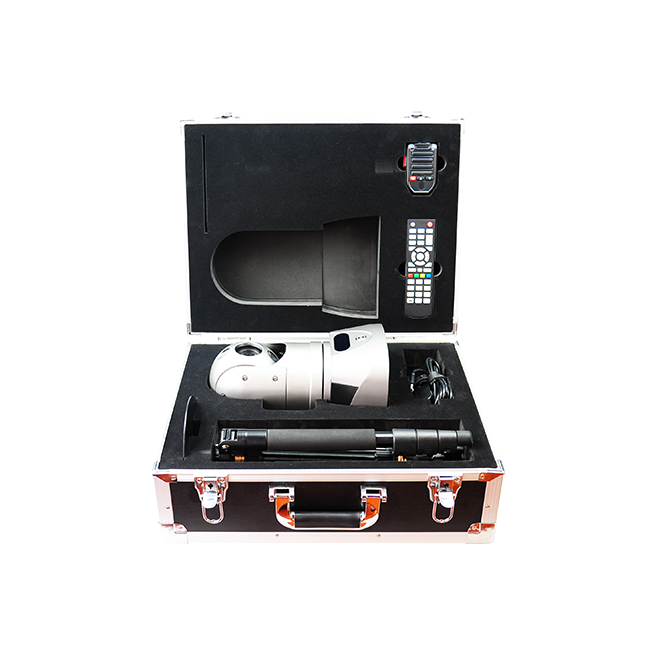

other Installation Mode Comes with a suitcase, can be adsorbed by chassis magnets or installed with a lift bracket
Protection level IP66

This product supports a variety of AI applications such as helmet recognition, work clothes recognition, face recognition, license plate recognition, etc. You can click the customer button in the lower right corner to consult specific applications.
